Intermediates and Punch Adapters
Rolleri intermediates and adapters for punches
ROL4 MAN
| Article No. | With intermediate | Price | |
|---|---|---|---|
| ROL4 MAN INT100F | INT100F* |
|
|
| ROL4 MAN INT120F | INT120F* |
|
|
| ROL4 MAN INT150F | INT150F* |
|
|
| ROL4 MAN INT120-40F | INT120-40F* |
|
|
| ROL4 MAN INT100 | INT100 |
|
|
| ROL4 MAN INT120 | INT120 |
|
|
| ROL4 MAN INT150 | INT150 |
|
|
| ROL4 MAN INT120-40 | INT120-40 |
|
|
| ROL4 MAN INT50-40 | INT150-40 |
|
|
| ROL4 MAN INT120HD | INT120HD |
|
|
| ROL4 MAN INT150HD | INT150HD |
|
|
| ROL4 MAN INT120-40HD | INT120-40HD |
|
|
| ROL4 MAN INT150-40HD | INT150-40HD |
|
- Description
- Features

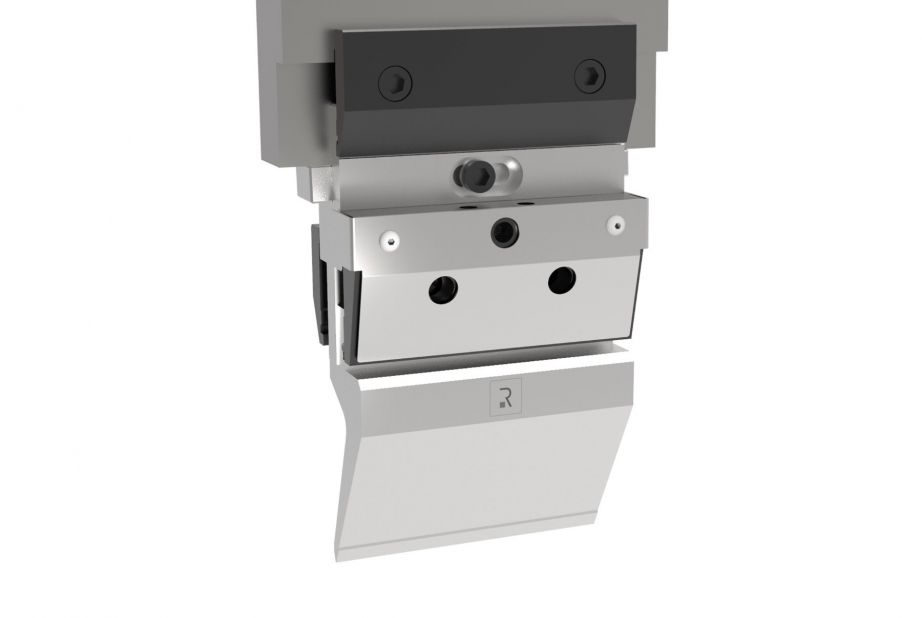

Manual upper fast clamping system with front clamp for Type R1 tools, 150mm length. Max. load 1000 kN/m
*without crowning wedge
ROL4 is a fast clamping system which guarantees powerful clamping and lifts and seats a punch automatically. ROL4 comes in manual and hydraulic version and with the rear clamp in every model, for clamping tool in reverse way. The front carter is mounted directly on the clamp, in order to protect the connections betwen intermediates as well as being aesthetically pleasant. This protection avoid any accidental collision and keep the components safe. The strong features of ROL4 are: reliability, strength and safety.
Thanks to the crowning wedge, ROL4 can compensate usual structural deformations of the press brake. A central lslotted hole allows to losen the wedge regulation screw. Its movement to the left or to the right determines a different heigth of the intermediate.
UPPER SYSTEM
ROL4 system is compatible with all press brakes with Amada-Promecam type tang. No tool modification is necessary.
DOUBLE CLAMP
The double clamping system ensures maximum flexibility in terms of use.
TOOL CHANGE
Both Front and rear clamp allow horizontal tool change.
AUTOMATIC ALIGNMENT
All these clamping systems lift and seat punches automatically against the intermediate and guarantee their perfect alignment.
SAFETY
Anti-fall system “full safety” for all R1 type tools without modifications.
POWER SUPPLY
System available in hydraulic and manual version.
INSTALLATION
Its installation is quick and easy, as the system is mounted on Rolleri Standard intermediates. No press brake modification are needed.
ROL200 MAN Extreme
Manual upper fast clamping system with front clamp for Type R1 tools, 150mm length. Max. load 1000 kN/m
ROL200 KDS MAN Extreme
Manual upper fast clamping system with double clamp (front and rear) for Type R1 tools, 150mm length. Max. load 1000 kN/m
