ROL200 HYD Power

Article No. Length With intermediate Price
ROL200H Power INT100 150 mm INT100
  • Description
  • Features
  • Attachments

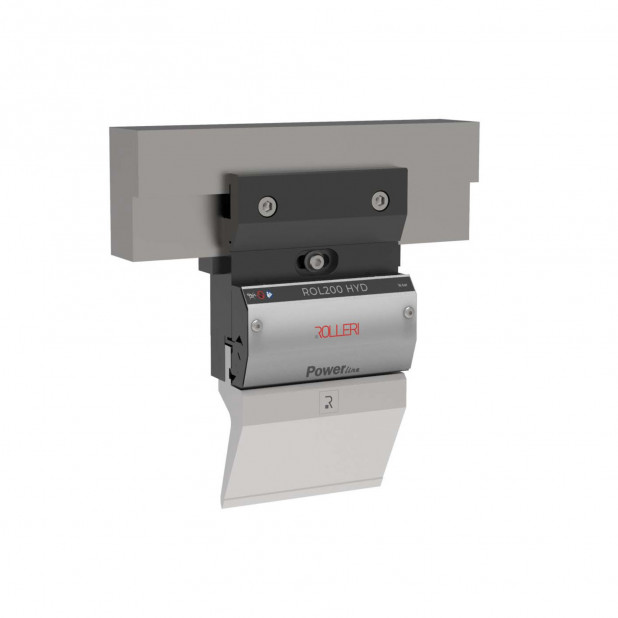

Hydraulic upper fast clamping system with front clamp for Type R1 tools, 150mm length. Max. load 1000 kN/m

Hydraulic version

The Power line was created with the aim of providing a single rapid clamping system capable of managing two different power supplies.
With the ROL200 Power we can control the movement of the clamps both pneumatically and hydraulically using the same system as all connections and components are standardized to offer a simple, safe and economic solution.

ROL200 represents the patented system created by Rolleri for a safe, vertical tool change of all type R1 tools. While the Extreme version may be adopted for all the standard intermediates (H100, H120, H150) and with 7 or 20 mm axes (Z1 and Z2), The Power version was developed with the aim of providing a single clamping system that could work with two different types of power supply.

With ROL200 Power we can control the clamp movement both pneumatically and hydraulically with the same system, as all the connection and the components are standardized in order to offer an easy, safe and economical solution.

This innovative clamping system can satisfy every need in terms of final application: it’s suitable for first equipment of new press brakes and also to renew the equipment of older machines.

UPPER SYSTEM

Rol200 patented system is compatible with all press brakes with Amada-Promecam type tang. No tool modification is necessary.

TOOL CHANGE

The front clamp allows a quick, vertical tool change.

Tools are mounted and dismounted by a special movement wich ensures a safe anti-fall system and accelerate the tools setup operation.

AUTOMATIC ALIGNMENT

All these clamping systems lift and seat punches automatically against the intermediate and guarantee their perfect alignment.

SAFETY

Anti-fall system “full safety” for all R1 type tools without modifications.

POWER SUPPLY

System available in pneumatic and hydraulic version, without changing components.

POWER UNIT: HPU-E/1

  • To be connected to CNC for open-close function
  • Gives electric signal to CNC in case of lowering pressure, setting press brake in Alarm stop
  • Works on 220-380 volt
  • Pressure 30/80/160 BAR
