AROL HYD EXTREME
Upper fast clamping system, Hydraulic, in 42CrMo4 hardened for R5 (American) tools, length from 1219.2 to 6096 mm. max load 2500 kN/m shoulder thrust
AROL HYD POWER
| Article No. | Length | Price | |
|---|---|---|---|
| AROL HYD Pow.1219.2 | 1219.2 mm |
|
|
| AROL HYD Pow.1828.8 | 1828.8 mm |
|
|
| AROL HYD Pow.2438.4 | 2438.4 mm |
|
|
| AROL HYD Pow.3048 | 3048 mm |
|
|
| AROL HYD Pow.3657.6 | 3657.6 mm |
|
|
| AROL HYD Pow.4267.2 | 4267.2 mm |
|
|
| AROL HYD Pow.4876.8 | 4876.8 mm |
|
|
| AROL HYD Pow.5486.4 | 5486.4 mm |
|
|
| AROL HYD Pow.6096 | 6096 mm |
|
- Description
- Features
Upper fast clamping system, Hydraulic, in C45 hardened for R5 (American) tools, length from 1219.2 to 6096 mm. max load 1500 kN/m shoulder thrust

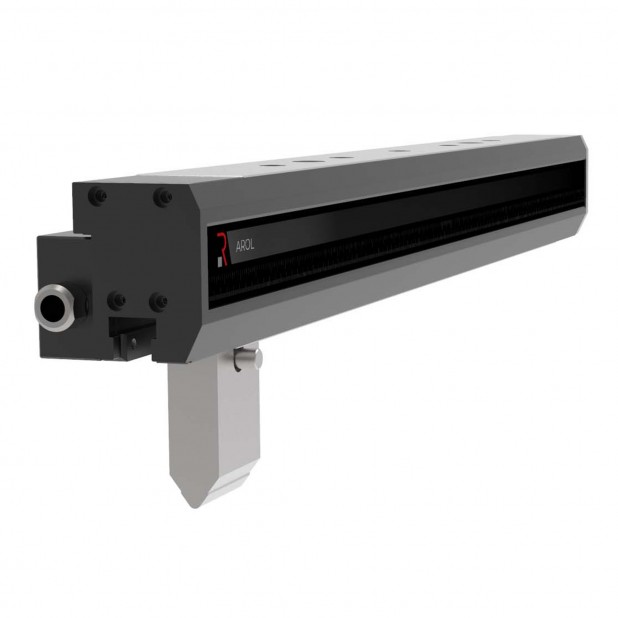

AROL systems represent an evolution of American clamping systems. They look like long beams in one solid piece with a new structural and aesthetic design. Every AROL undergoes heating treatment to give proper hardness to the contact surfaces of the system with tooling. According to the necessary capacity you can choose among Power, Supreme and Extreme line. Several lengths are available from 1219.2mm (3.608 ft) to 6096mm (20.131 ft) for any press brake. You can also retrofit a press brake with R1 type tang to clamp American type tools and gain some daylight thanks to the limited working height of AROL being only 80mm 3.15''. In this version you can choose between AWP version (fix) and AWPC with crowning wedges.
UPPER SYSTEM
AROL clamping systems are for American style tooling.
TOOL
AROL clamping system guarantees the maximum flexibility, as punches can be mounted backward.
TOOL CHANGE
Punches with Quick Lock system can be inserted vertically, whereas punches with safety groove can be slided in horizontally.
ALIGNMENT
AROL systems guarantee perfect alignment along X axis.
Punches with Quick Lock are lifted and seated automatically on the shoulders.
SAFETY
AROL guarantees maximum safety for all punches with Quick Lock and with antifall groove. To clamp punches with straight tang (without Quick Lock or safety groove), we recommend to slide them horizontally using dies as support.
SUPPLY
The system is available in pneumatic and hydraulic versions
TX
Rolleri adjustment system during installation is very useful to adjust the overall beam length.
The subsequent advantage is the correct position of the bending axis in relation to the backgauges. Thanks to this, precision and repeatability are guaranteed for any profile.
INSTALLATION
AROL systems can be mounted to an upper beam thanks to holes with standard pitch. TX enables any correction along the X axis.
Instructions to connect the system to press brake CNC are given in the user manual.
POWER UNIT: HPU-E/1
- To be connected to CNC for open-close function
- Gives electric signal to CNC in case of lowering pressure, setting press brake in Alarm stop
- Works on 220-380 volt
- Pressure 30/80/160 BAR
AROL HYD SUPREME
Upper fast clamping system, Hydraulic, in 42CrMo4 hardened for R5 (American) tools, length from 1219.2 to 6096 mm. max load 2500 kN/m shoulder thrust
