ST60 / ST60R / STG60
Front clamp in Fe37 with anti-fall tooth for upper tools type R1, length 150 mm.
EASY CLAMP
| Article No. | Weight | Type | Price | |
|---|---|---|---|---|
| ST60 | 0.8 | Front clamp not ground |
|
|
| ST60R | 0.8 | Front clamp ground |
|
|
| STG60 | 0.8 | Front clamp with polyurethane insert |
|
|
| INT100 FISSO | 4.0 | Intermediate H=100mm (without crowning wedge) |
|
|
| INT120 FISSO | 4.0 | Intermediate H=120mm (without crowning wedge) |
|
|
| INT100 | 3.5 | Intermediate H=100mm |
|
|
| INT120 | 3.5 | Intermediate H=120mm |
|
|
| INT150 | 5.9 | Intermediate H=150mm |
|
|
| INT120-40 | 5.2 | Intermediate H=120mm axis 20mm |
|
|
| INT150-40 | 8.0 | Intermediate H=150mm axis 20mm |
|
|
| INT120HD | 4.0 | Intermediate H=120mm (heavy duty) |
|
|
| INT150HD | 5.9 | Intermediate H=150mm (heavy duty) |
|
|
| INT120-40HD | 4.0 | Intermediate H=120mm axis 20mm (heavy duty) |
|
|
| INT150-40HD | 8.0 | Intermediate H=150mm axis 20mm (heavy duty) |
|
STL60 / STL60R / STLG60
Front clamp in Fe37 with lever for upper tools type R1, length 150 mm.
STX60 / STX60R / STXG60
Front clamp in Fe37 with lever for upper tools type R1, length 150 mm.
.jpg)
.jpg){kind=link}
- Description
- Features
Manual Upper fast clamping system with front clamp for R1 tools, length 150 mm. Max. Load 1000 kN/m
*Without crowning wedge

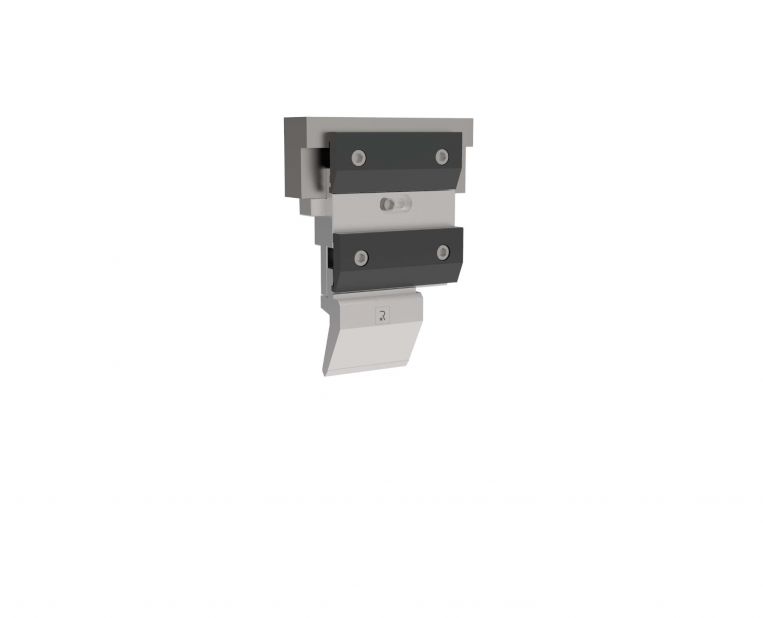

EASY CLAMP is the simplest system and it's considered standard all over the world. Intermediates vary a lot ranging from 100mm (3.94'') to 150mm (5.90''). They may also have 2 different bending axis: Z1 at 7mm (0.28'') and Z2 at 20mm (0.79'') from the tang. Each intermediate can be used with manual clamps (with screws) and fast clamps (with lever).
Every clamp type is also available with ground clamping surface or with polyurethane insert to clamp better segmented punches. EASY CLAMP can have fix height with +/- 0.01mm tolerance or it can be equipped with a crowning wedge. By releasing the central screw and moving it to the left or to the right, crowning wedge is moved and intermediate height adjusted.
UPPER SYSTEM
EASY CLAMP3 is compatible with all press brakes with Amada-Promecam tang. No tooling modification is required.
DOUBLE CLAMPING
EASY CLAMP is available with front clamp only and with double clamps (front and back) - DOUBLE EASY CLAMP.
The system offers different front clamps (ST60/ST60R/STG60 - STL60/STL60R/
STLG60 - STX60/STX60R/STXG60)
TOOL CHANGE
ST60 clamps are opened and closed with screws and enable horizontal tool change. Back clamp too enables horizontal tool change.
ALIGNMENT
Punches are aligned manually or by simulating a bending process without sheet metal so that punch presses in the die V opening. Afterwards you can tighten clamp screws.
SAFETY
Screw driven clamps guarantee safe tool clamping even in manual mode.
A special optional polyurethane insert clamps better sectioned tools.
SUPPLY
The system is available in manual version.
It's a complete, manual, fast and convenient clamping system.
INSTALLATION
EASY CLAMP is designed for a press brake with 50mm 1.97'' distance between intermediates. Installation is easy and intuitive. In order to install intermediates with wedges properly, check the press brake user manual to adjust the height to compensate the upper beam deformation.
