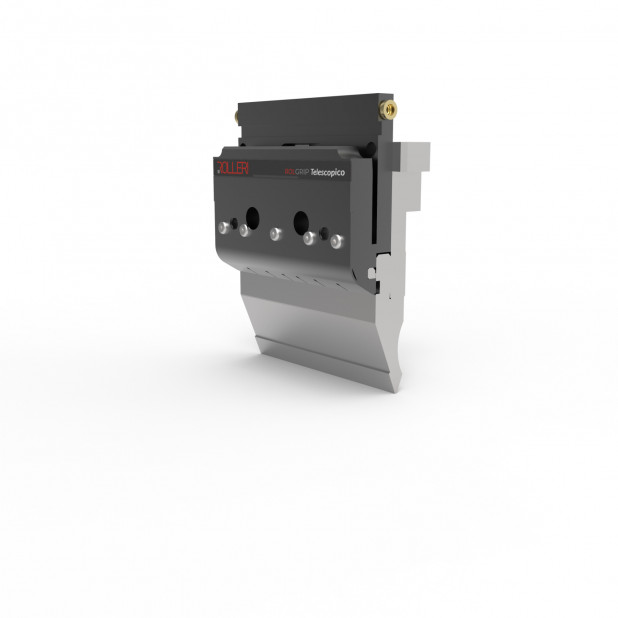

Rolgrip Telescopic
With the Rolgrip TELESCOPIC system, positioning and centering take place automatically while the punches are clamped.

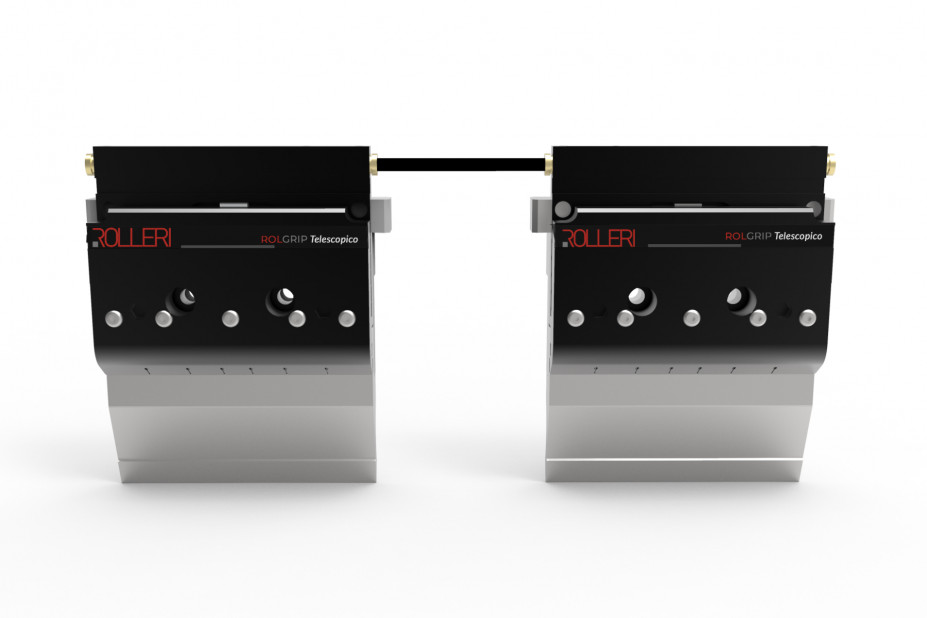

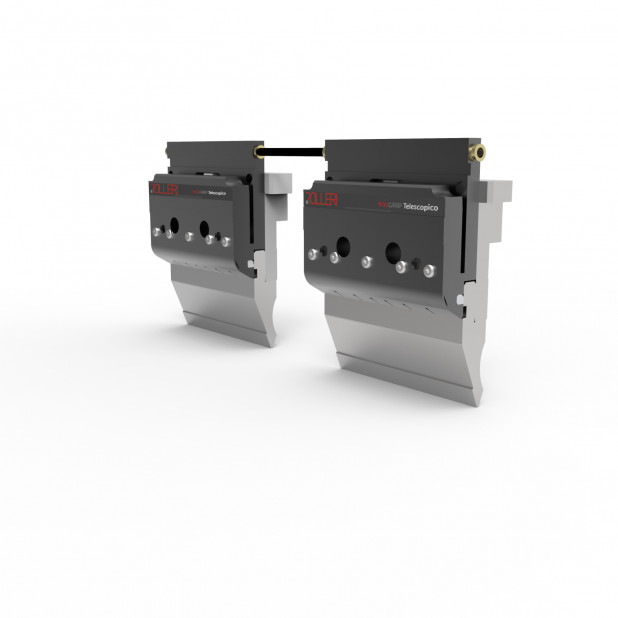

The system is equipped with a telescopic tube which allows a large lateral movement of the modules.
| Article No. | With intermediate | Price | |
|---|---|---|---|
| Rolgrip Telescopic_int 100 | INT100 |
|
|
| Rolgrip Telescopic_in120HD | INT120HD |
|
|
| Rolgrip Telescopic_int150HD | INT150HD |
|
|
| Rolgrip Telescopic_int120-40HD | INT120-40 HD |
|
|
| Rolgrip Telescopic_int150-40HD | INT150-40HD |
|
- Description
- Features
Automatic pneumatic clamping system for upper tools
UPPER TOOLS
Automatic pneumatic clamping system for upper tools
FRONTAL LOADING
FRONTAL introduction / extraction of the standard European type tool and automatic return at the stop.
TECNICAL FEATURES
Unit height = 100mm.
Bending axis = 7mm.
Also available for axis with intermediate H.150.
Bending axis = 7mm.
Also available for axis with intermediate H.150.
POWER
Energetic connection by telescopic pipes in stainless steel (patented)
DUAL ORIENTATION
Possibility of fitting tools on the rear side of the clamping units by bracket mod. 11008 (manual clamping) not included in the supply
