FAST CLAMP1Products > CLAMPING SYSTEMS > DOUBLE FAST CLAMP1FAST CLAMP3

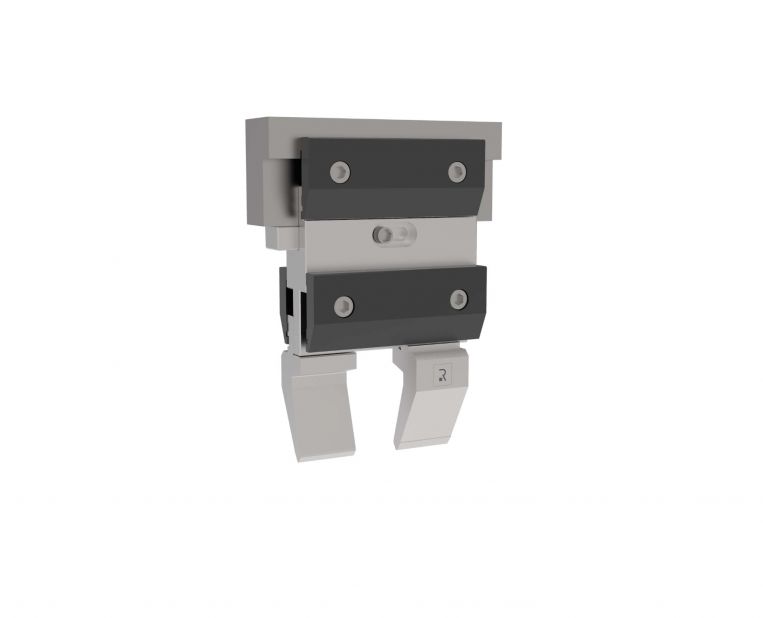

DOUBLE FAST CLAMP1

Article No. With intermediate Price
DFC1
DFC1.INT100F INT100F
DFC1.INT120F INT120F
DFC1.INT100 INT100
DFC1.INT120 INT120
DFC1.INT150 INT150
DFC1.INT120-40 INT120-40
DFC1.INT150-40 INT150-40
DFC1.INT120HD INT120HD
DFC1.INT150HD INT150HD
DFC1.INT120-40HD INT120-40HD
DFC1.INT150-40HD INT150-40HD
  • Description
  • Features
  • Attachments

Manual Upper fast clamping system with front and rear clamp for R1 tools, length 150 mm. Max. Load 1000 kN/m.

*without crowning wedge

FAST CLAMP1 is a combination of traditional clamps with screws and with a lever. Clamps are made of a more resistant material and undergo several treatments to increase their resistance and to avoid corrosion. Clamps are opened and closed by means of a lever rotating around a central pin. One of the main features of FAST CLAMP1 is the adjustability of the pin. Thanks to this feature, we can always control the clamping force of punches, even in case punch tang is worn out.
FAST CLAMP1 can be mounted on all standard intermediates and thanks to a hardened back plate, the pin doesn't damage the intermediate as it happens in traditional clamps.
A removable lever extender can be used in order to open and close clamps easier. Such lever extender can be used to open clamps with LC shorter lever mounted on the right edge of the upper beam to avoid collision during box bending.
With FAST CLAMP1 R1 punches with ROL1 ball bearings can be inserted vertically, lifted and seated automatically.

UPPER SYSTEM

FAST CLAMP1 is compatible with all press brakes with Amada-Promecam tang.
To be used with ROL1 system, punches are modified and equipped with ball bearings

DOUBLE CLAMPING

FAST CLAMP1 is available with front clamp only and with double clamps (front and back) - DOUBLE FAST CLAMP1

TOOL CHANGE

Both front and back clamps enable vertical tool change

ALIGNMENT

FAST CLAMP1 lifts and seats punches automatically and guarantees their perfect alignment.

SAFETY

Vertical tool change is enabled by ball bearings which also work as antifall system.

SUPPLY

The system is available in manual version. It's a complete, manual, fast and convenient clamping system.

INSTALLATION

FAST CLAMP1 is designed for a press brake with 50mm distance between intermediates. In case such distance is bigger, please make sure that the minimum quantity of ball bearings is taken by the clamp. Such quantity depends on the tool type and length.

ROL200 KDS MAN Extreme

Manual upper fast clamping system with double clamp (front and rear) for Type R1 tools, 150mm length. Max. load 1000 kN/m

FAST CLAMP1

Manual Upper fast clamping system with front clamp for R1 tools, length 150 mm. Max. Load 1000 kN/m.
