ROL2 MANProducts > CLAMPING SYSTEMS > ROL2 HYDROL2 PN

ROL2 HYD

Article No. Length Table Weight Price
ROL2 HYD 60-C 1075 mm 60 mm 5,50
ROL2 HYD 90-C 1075 mm 90 mm 5,00
ROL2 CLAMP1 HYD 500 mm 60 mm 31,70
ROL2 CLAMP1 HYD 90 500 mm 90 mm 23,00
ROL2 CLAMP1 HYD-F 500 mm 60 mm
ROL2 CLAMP1 HYD 90-F 500 mm 90mm
  • Description
  • Features
  • Attachments

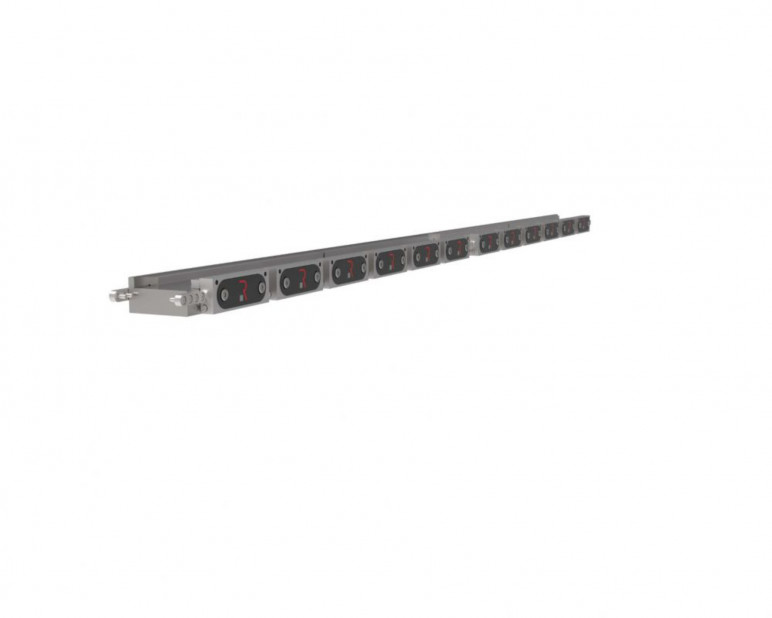

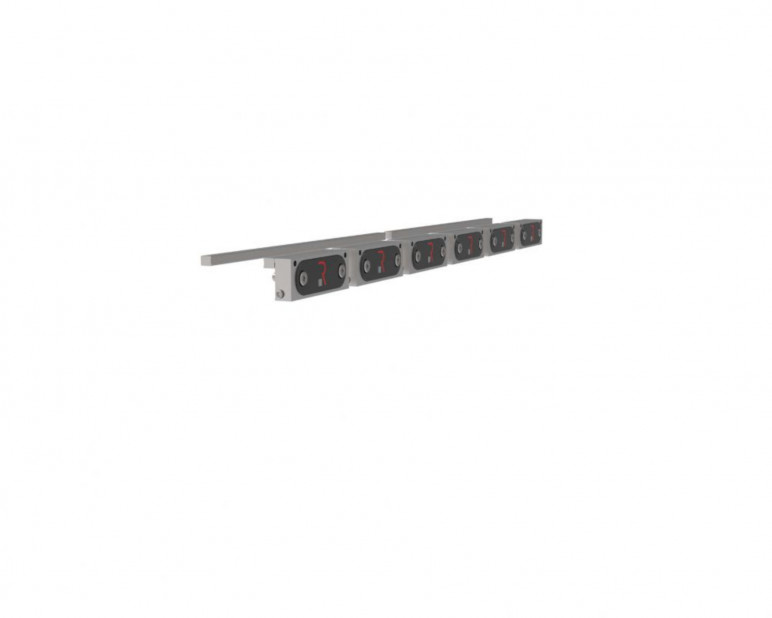

Fast lower clamping system, Hydraulic, for R1 dies, length 150 mm

ROL2 is the best system to clamp R1 type dies with 60mm 2.36'' and 90mm 3.54'' base.
Thanks to its construction, when the clamp is closed, clamping pressure is evenly distributed along the die and guarantees its perfect alignment. The main advantage of such system consists in die V opening being automatically centered. In addition to this, tooling clamping is faster than ever. Both in case an operator uses a pneumatic, hydraulic or manual version, he can start bending after a few seconds under the safest conditions.
ROL2 has been designed to complete clamping system range for R1 type tools.
This system can be mounted in brand new press brakes as well as in already operating press brakes. ROL2 means speed, quality and flexibility.

LOWER SYSTEM

ROL2 system is compatible with all press brakes with Amada-Promecam tang.
No tool modification is required

SPECIAL POLYURETHANE INSERT

ROL2 system contains a device which activates ROL2 CLAMP1 clamps. These clamps are integrated in the system and can clamp and release dies. A special polyurethane insert mounted in the clamps guarantees the perfect die alignment.
Clamping force is also evenly distributed along the tools.

SUPPLY

This system is available in manual, pneumatic and hydraulic versions. The Hydraulic system is composed of hydraulic clamps L=150mm which are activated by an hydraulic driving unit or by press brake CNC.

INSTALLATION ON TABLES 60mm AND 90mm WIDE

Clamps can be installed directly to press brake table using the holes for standard clamps (hole pitch 100mm). In alternative you need to modify the hole pitch.
In order to clamp Rolleri R1 dies with 60mm 2.36'' base in tables 90mm 3.54'' wide, we supply 2 shims 15mm 0.59'' wide (with clamping pins).
The system is compatible with press brakes with automatic crowning systems.

INSTALLATION

ROL2 system is easy, innovative and, above all, flexible. To be mounted in a new press brake, it only needs a specific hole pitch and you can mount clamps directly to the table.
To be mounted in an already operating press brakes, the system is supplied with a die holder.

SAFETY

The new design enables clamping of the smallest die segments

POWER UNIT: HPU-E/1

  • To be connected to CNC for open-close function
  • Gives electric signal to CNC in case of lowering pressure, setting press brake in Alarm stop
  • Works on 220-380 volt
  • Pressure 30/80/160 BAR

ROL2 PN

Fast lower clamping system, pneumatic, for R1 dies, length 150 mm

ROL2 MAN

Fast lower clamping system, manual, for R1 dies, length 150 mm
