SM55.14.30/C

Article No.	Length	Weight
SM55.14.30/C.500	500 mm	9.50
SM55.14.30.1000	1000 mm	19.00
SM55.14.30.1100s	1100 mm F

"Hemming die R1 European type TOP Series with height=55mm, Material=42cr, Max. load=600kN/m. To use with TOP.S

Description
Features
Attachments

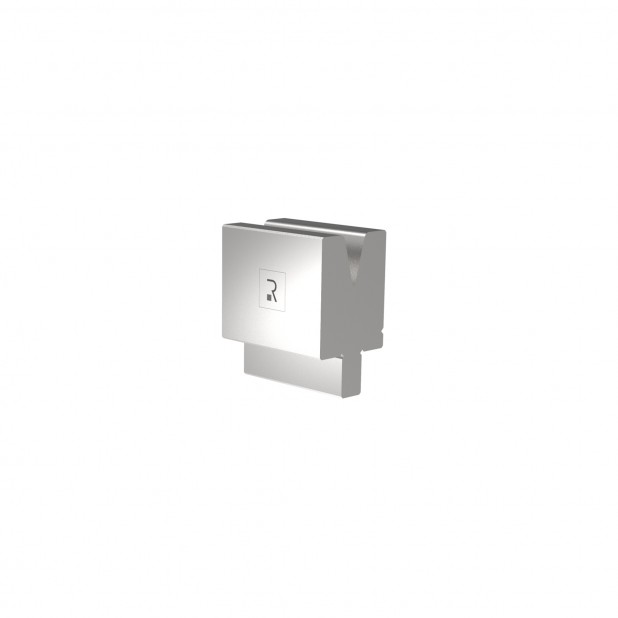

Hemming die R1 European type TOP Series with height=75mm, Material=42cr, Max. load bending=600kN/m, hemming=1000kN/m To use with TOP.SC.130 / TOP.SC.130PN

Availability	on stock
Family	CLASSIC
Product type	Hemming die HD
Tonnage	600 kN/m max.
Material	42Cr: 900-1150 N/mm²
Height	75
Useful height	55
Degrees	30
Radius	0.8
V [mm]	14
To use with	TOP.SC.130 \| TOP.SC.130PN

MSA - magnet

Extremely versatile and flexible magnetic bracket

TOP150.30.R12

Punch R1 European type TOP Series with Working height=120mm, α=30°, Radius=1,2mm, Material=C45, Max. load=1000kN/m.To use with SM55.14.30/C and SM55.1…

TOP.SC.130

Sping-loaded Hemming die R1 European type with total height=130mm, Material=42cr, Max. load=1000kN/m.

TOP.SC.130PN

Pneumatic Hemming die R1 European type with total height=130mm, Material=42cr, Max. load=1000kN/m.
