T80.25.60TOOLS > PRESS BRAKES > Tools > Type R1: Dies > T120.06.60TR120.06.60

T120.06.60

Article No. Length Weight Price
T120.06.60.835 835 mm 16.00
T120.06.60.415 415 mm 8.00
T120.06.60.795s 795 mm FX 15.20
T120.06.60.805s 805 mm F 15.40

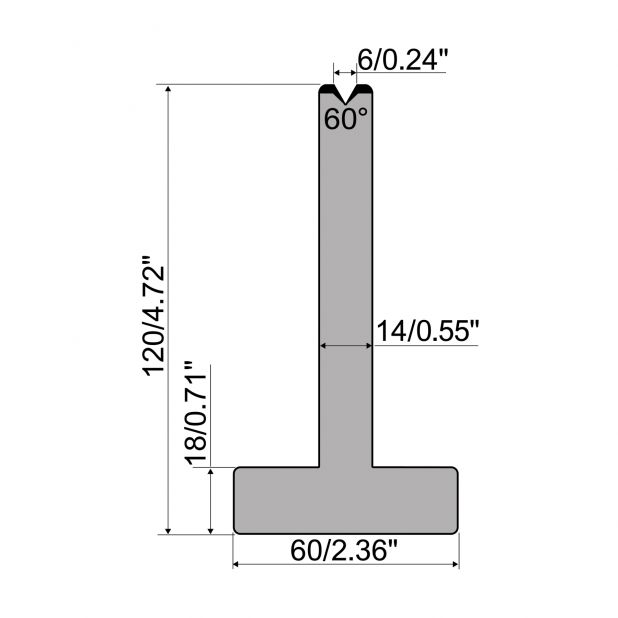

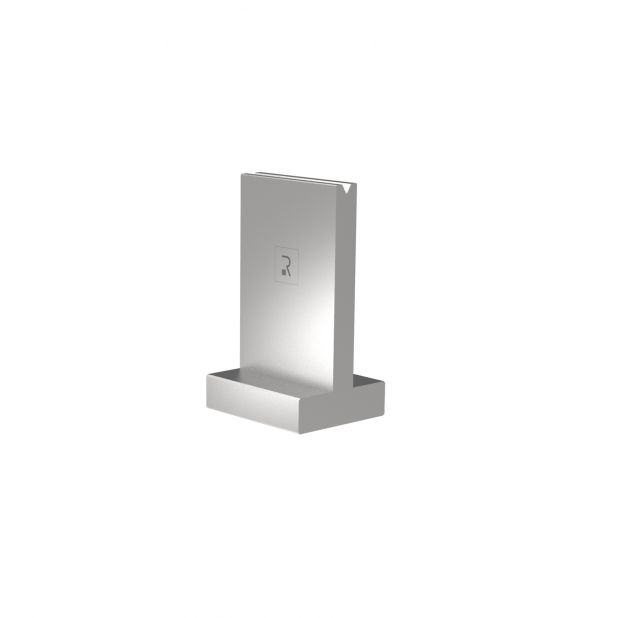

T die R1 European type with height=120mm, α=60°, Radius=0,5mm, Material=C45, Max. load=600kN/m.
T die R1 European type with height=120mm, α=60°, Radius=0,5mm, Material=C45, Max. load=600kN/m.
  • Description
  • Features
  • Attachments

T die R1 European type with height=120mm, α=60°, Radius=0,5mm, Material=C45, Max. load=600kN/m.

805 mm F
795 mm FX
