30148TOOLS > PRESS BRAKES > Tools > Type R1: Dies > 3024830348

30248

Article No. Length Weight Price
30248.835 835 mm 14.20
30248.415 415 mm 7.10
30248.835s 835 mm FCA 13.70
Self centering 2-V die R1 European type A Series with total height=46mm, α=9°, Radius=0./0.6mm, Material=C45
Self centering 2-V die R1 European type A Series with total height=46mm, α=9°, Radius=0./0.6mm, Material=C45
  • Description
  • Features
  • Attachments

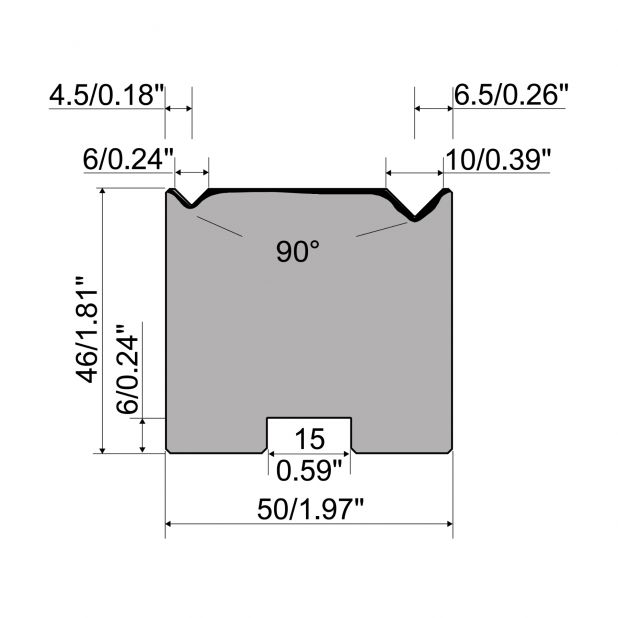

Self centering 2-V die R1 European type A Series with total height=46mm, α=90°, Radius=0.4/0.6mm, Material=C45, Max. load=700kN/m.

835 mm FC
795 mm FX

30000

Holder for self centering 2-V die R1 european A series with height 15mm, Material=C45, Max. load=1000kN/m.
