S110.30.08

Article No. Length Weight Price
S110.30.08.835 835 mm 30.00
S110.30.08.415 415 mm 15.40
Sping-loaded Hemming die R1 European type with total height=110mm, α=30°, Radius=1,5mm, Material=C45, Max. l
Sping-loaded Hemming die R1 European type with total height=110mm, α=30°, Radius=1,5mm, Material=C45, Max. l
  • Description
  • Features
  • Attachments

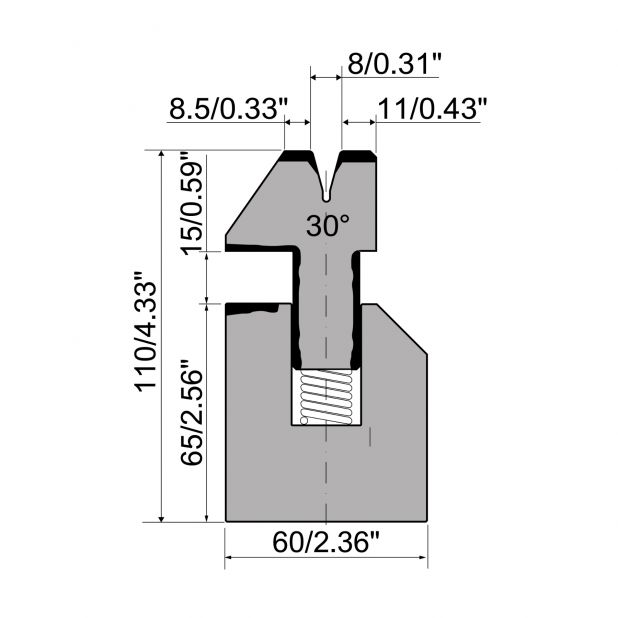

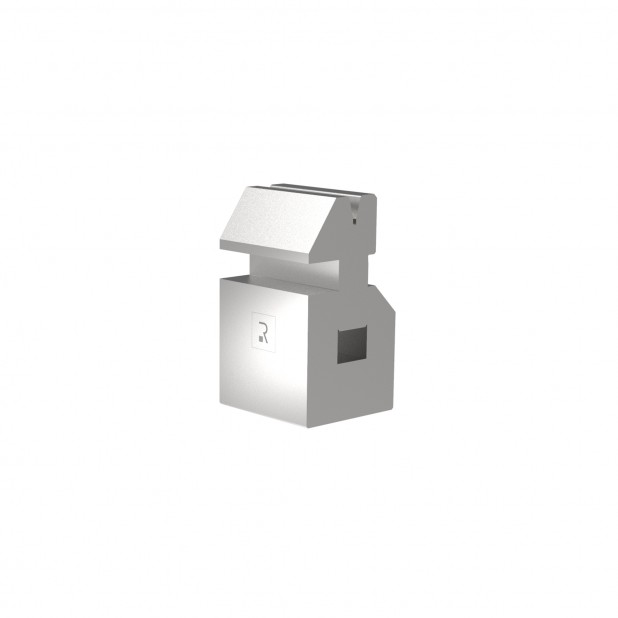

Sping-loaded Hemming die R1 European type with total height=110mm, α=30°, Radius=1,5mm, Material=C45, Max. load=800kN/m.

ex. of application
