KPN
The KPN pneumatic bending kit is a device able to manage the opening and closing of the upper part of the die in automatic mode. For pneumatic hemming…
TOP.SC.130PN
| Article No. | Length | Weight | Price | |
|---|---|---|---|---|
| TOP.SC.130PN.500 | 500 mm | 39.80 |
|
- Description
- Features

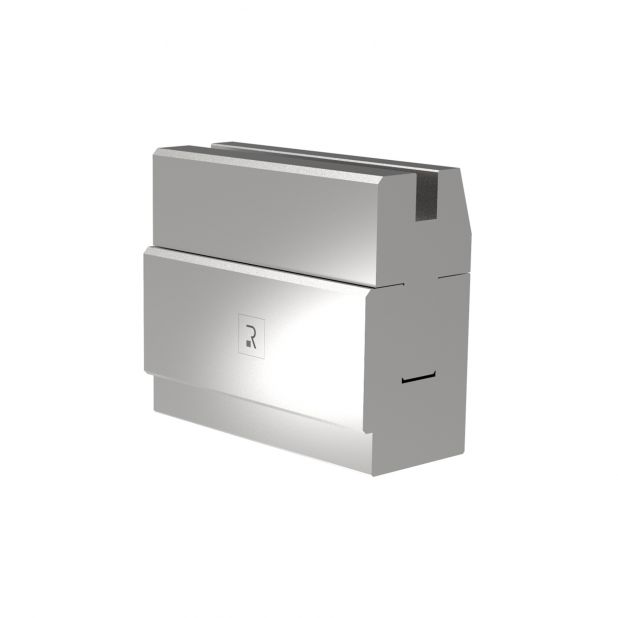

Pneumatic Hemming die R1 European type with total height=130mm, Material=42cr, Max. load=1000kN/m.
pneumatic Spring-loaded hemming dies
L=19.68" - H=5.12
To use with:
TOP150.30.R1
MSA - magnet
Extremely versatile and flexible magnetic bracket
TOP.SC.130
Sping-loaded Hemming die R1 European type with total height=130mm, Material=42cr, Max. load=1000kN/m.
BMR55.06.30
Die R2 type with Working height=55mm, α=30°, Radius=0,6mm, Material=42Cr, Max. load=350kN/m.
BMR55.08.30
Die R2 type with Working height=55mm, α=30°, Radius=0,8mm, Material=42Cr, Max. load=200kN/m.
BMR55.10.30
Die R2 type with Working height=55mm, α=30°, Radius=1mm, Material=42Cr, Max. load=350kN/m.
SM55.12.30/C
Hemming die R1 European type TOP Series with height=75mm, α=30°, Material=42cr. Max. load bending=500kN/m, hemming=900kN/m. To use with TOP.SC.130 /…
SM55.14.30/C
Hemming die R1 European type TOP Series with height=75mm, Material=42cr, Max. load bending=600kN/m, hemming=1000kN/m To use with TOP.SC.130 / TOP.SC.…
