SM55.14.30/CTOOLS > PRESS BRAKES > Tools > Type R1: Dies > 1210012300

12100

Article No. Length Weight Price
12100.415 415 mm 4.20
12100.835 835 mm 8.40

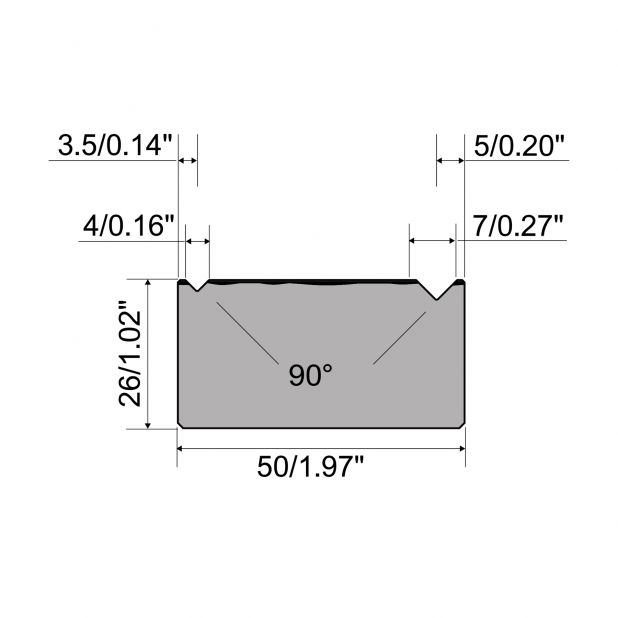

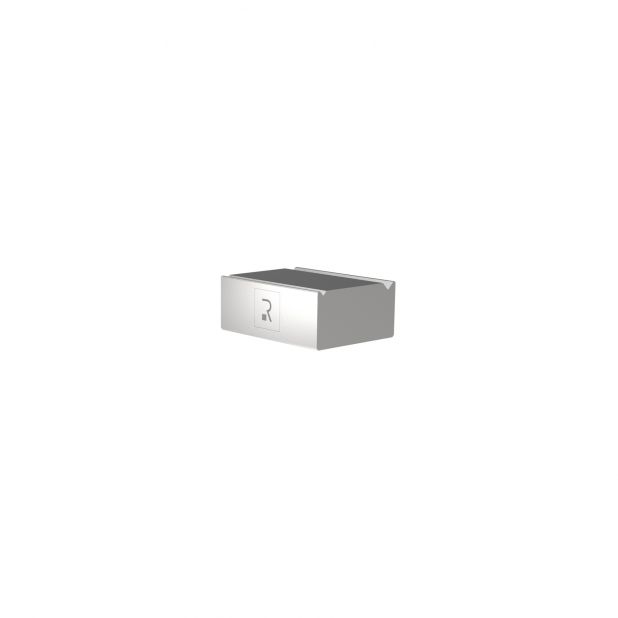

2-V die R1 European type A Series with total height=26mm, α=90°, Radius=0,4mm, Material=C45, Max. load=600to
2-V die R1 European type A Series with total height=26mm, α=90°, Radius=0,4mm, Material=C45, Max. load=600kN
  • Description
  • Features
  • Attachments

2-V die R1 European type A Series with total height=26mm, α=90°, Radius=0,4mm, Material=C45, Max. load=600kN/m.
