34100TOOLS > PRESS BRAKES > Tools > Type R1: Dies > 05500CFH60.06.86

05500

Article No. Length Weight Price
05500.835 835 mm 21.70
05500.415 415 mm 10.80
1-V die R1 European type A Series with total height=65mm, α=30°, Radius=4mm, Material=C45, Max. load=600ton/
1-V die R1 European type A Series with total height=65mm, α=30°, Radius=4mm, Material=C45, Max. load=600kN/m
  • Description
  • Features
  • Attachments

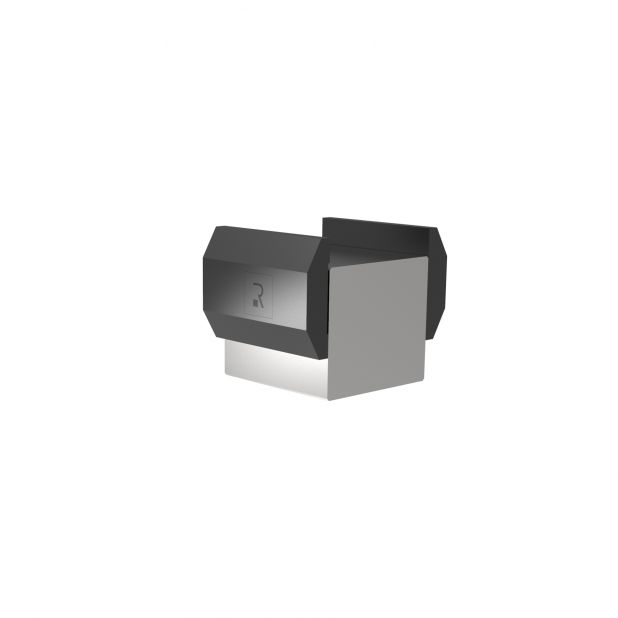

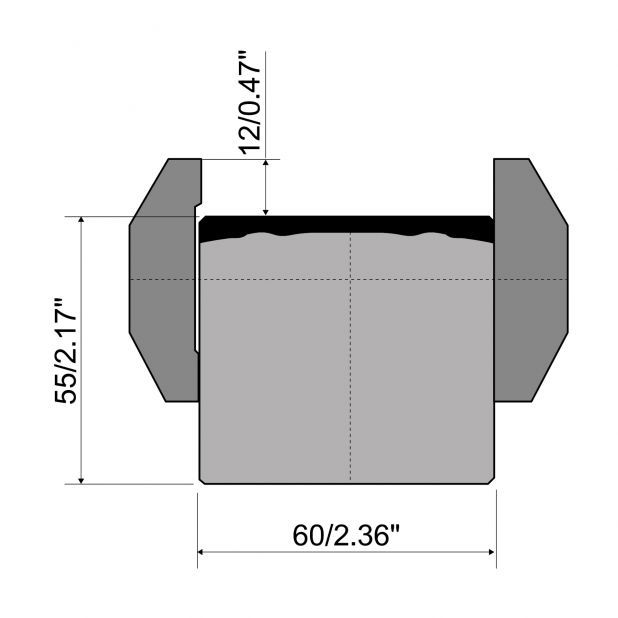

Die holder Material=C45, Max. load=1000kN/m. With 60mm base. Ideal to increase the height of the bench.
