S135PN.26.10

Article No. Length Weight Price
S135PN.26.10.835 835 mm 41.50
S135PN.26.10.415 415 mm 20.70
Pneumatic Hemming die R1 European type with total height=135mm, α=26°, Radius=1,5mm, Material=C45, Max. load
Pneumatic Hemming die R1 European type with total height=135mm, α=26°, Radius=1,5mm, Material=C45, Max. load
  • Description
  • Features
  • Attachments

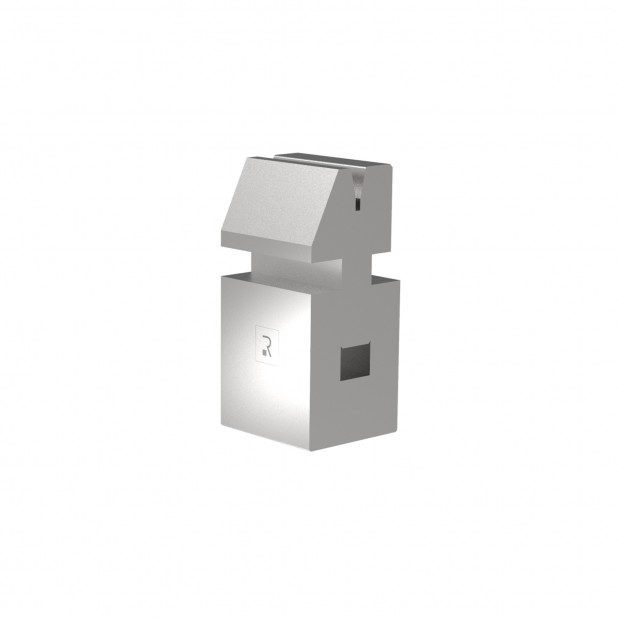

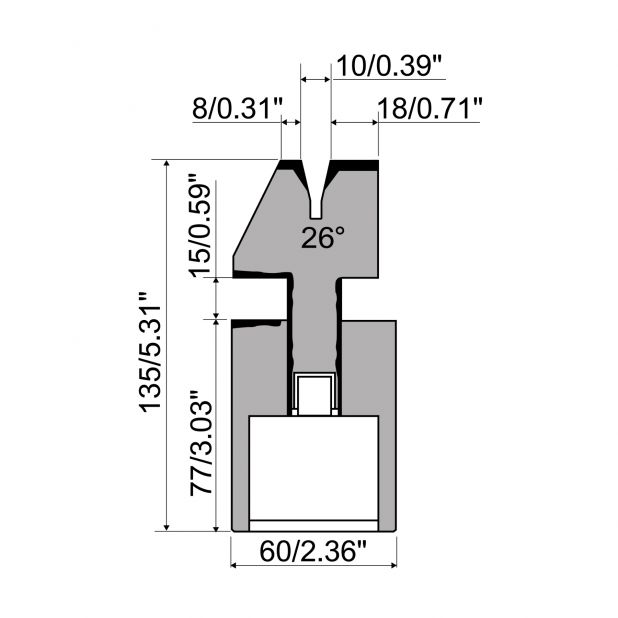

Pneumatic Hemming die R1 European type with total height=135mm, α=26°, Radius=1,5mm, Material=C45, Max. load=1000kN/m.

ex. of application

KPN

The KPN pneumatic bending kit is a device able to manage the opening and closing of the upper part of the die in automatic mode. For pneumatic hemming…
