S135PN.26.10TOOLS > PRESS BRAKES > Tools > Type R1: Dies > SA135PN.26.12KPN

SA135PN.26.12

Article No. Length Weight Price
SA135PN.26.12.835 835 mm 41.50
SA135PN.26.12.415 415 mm 20.50

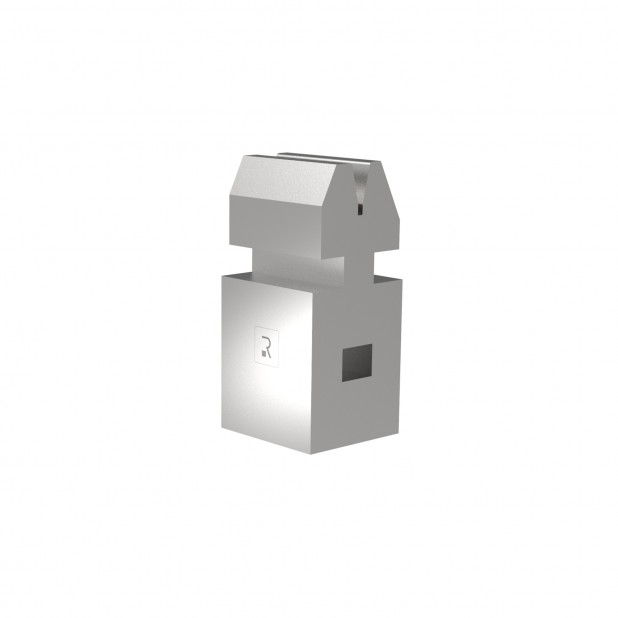

Pneumatic Hemming die R1 European type with total height=135mm, α=26°, Radius=2mm, Material=C45, Max. load=1
Pneumatic Hemming die R1 European type with total height=135mm, α=26°, Radius=2mm, Material=C45, Max. load=1
  • Description
  • Features
  • Attachments

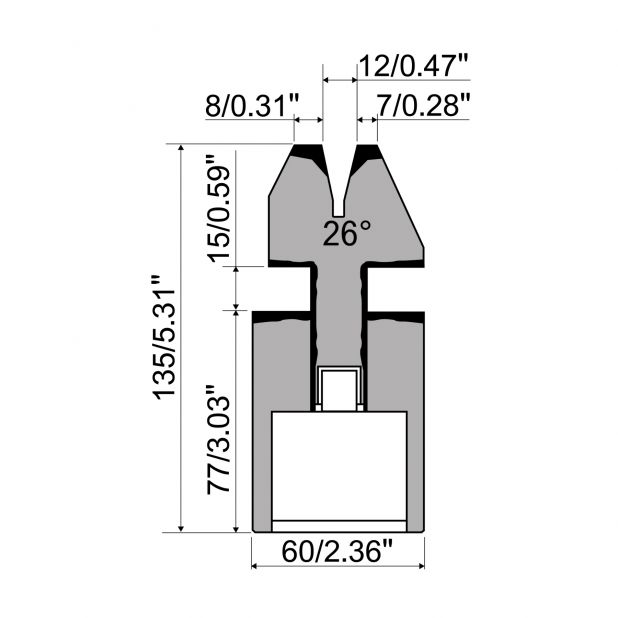

Pneumatic Hemming die R1 European type with total height=135mm, α=26°, Radius=2mm, Material=C45, Max. load=1000kN/m.

ex. of application

KPN

The KPN pneumatic bending kit is a device able to manage the opening and closing of the upper part of the die in automatic mode. For pneumatic hemming…
