46.16TOOLS > PRESS BRAKES > Tools > Type R1: Dies > M26.85.02PM50

M26.85.02

PM50 + Support required

Article No. Length Weight Price
M26.85.02.835 835 mm 9.00
M26.85.02.415 415 mm 4.50
M26.85.02.795s 795 mm FX 8.60
M26.85.02.805s 805 mm F 8.70
Self centering 2-V die R1 European type with height=26mm, α=85°, Radius=0.5/0.8mm, Material=C45, Max. load=1
Self centering 2-V die R1 European type with height=26mm, α=85°, Radius=0.5/0.8mm, Material=C45, Max. load=1
  • Description
  • Features
  • Attachments

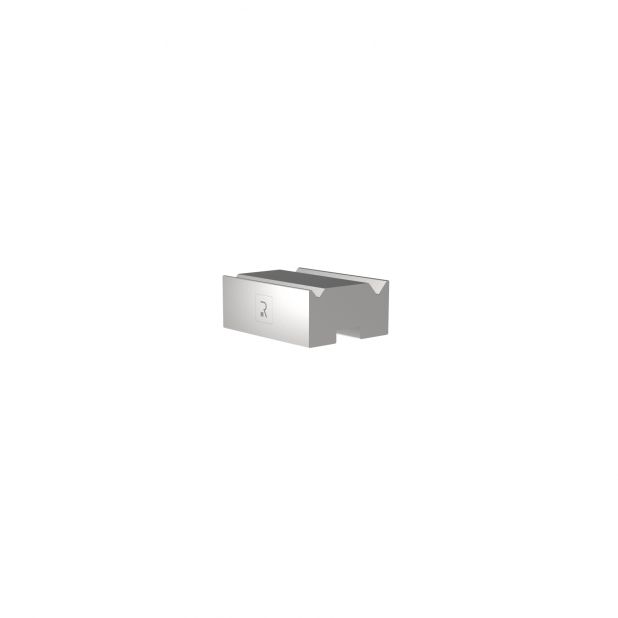

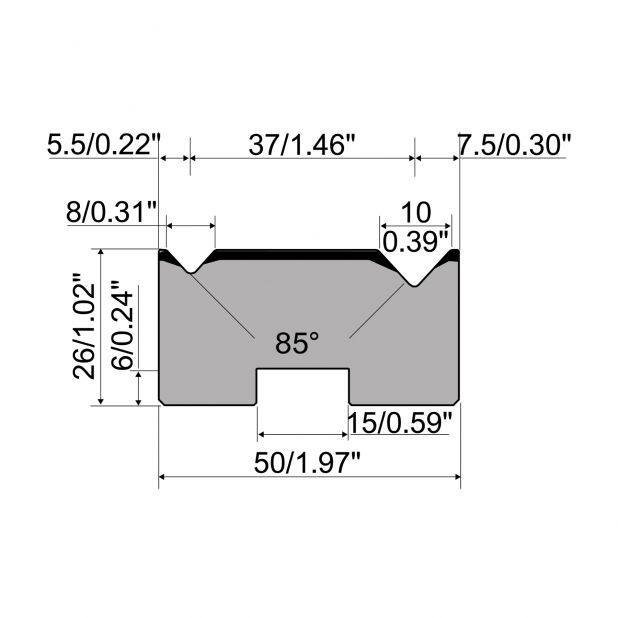

Self centering 2-V die R1 European type with height=26mm, α=85°, Radius=0.5/0.8mm, Material=C45, Max. load=1000kN/m.

805 mm F
795 mm FX

PM60

Holder for 2-V die R1 with height 25mm, Material=C45

PM50

Holder for 2-V die R1 with height 15mm, Material=C45

PM50.20

Holder for 2-V die R1 with height 20mm, Material=C45

PB60

Retainer for 2-V die R1 with height 25mm, Material=Fe37
