CFH60.12.86TOOLS > PRESS BRAKES > Tools > Type R1: Dies > CFH60.14.86CFH60.16.86

CFH60.14.86

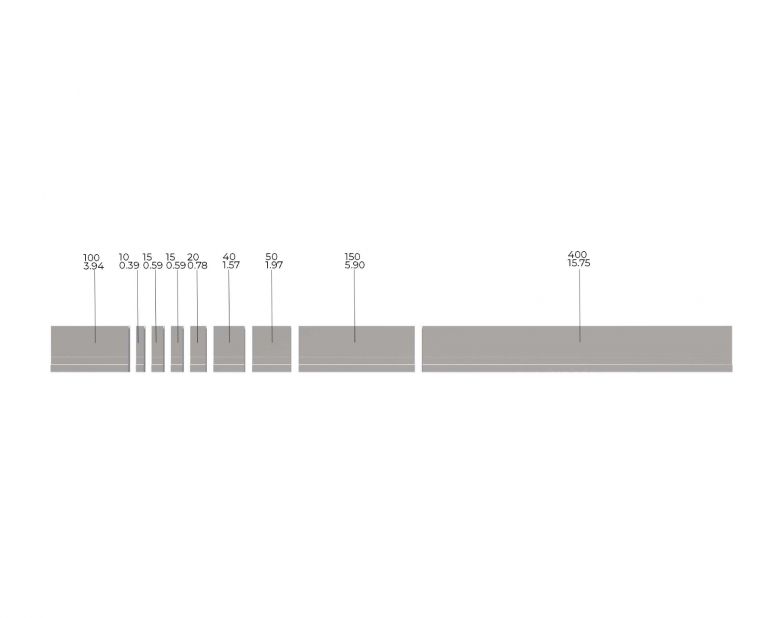

Article No. Length Weight Price
CFH60.14.86.415 415 mm 3.00
CFH60.14.86.800 800 mm F 5.80
CFH60.14.86.835 835 mm 6.20

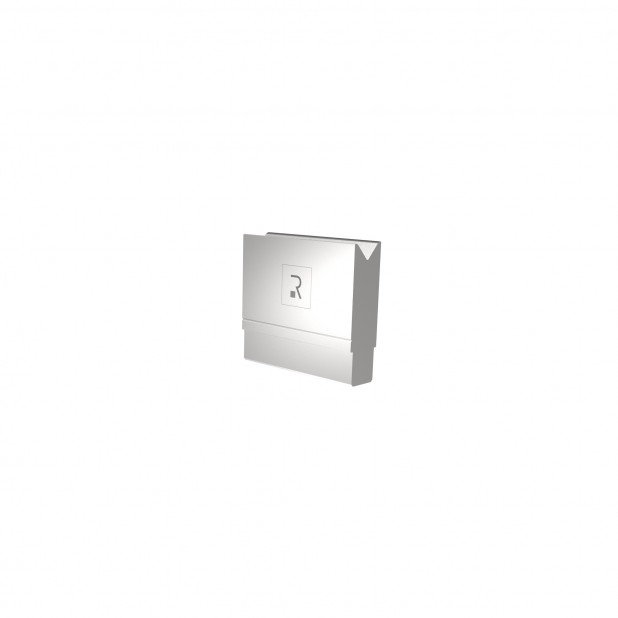

Die R1 CFH serie with working height=mm, α=86°, Radius=2,5mm, Material=42cr, Max. load=1000kN/m.
Die R1 CFH serie with working height=mm, α=86°, Radius=2,5mm, Material=42cr, Max. load=1000kN/m.
  • Description
  • Features
  • Attachments

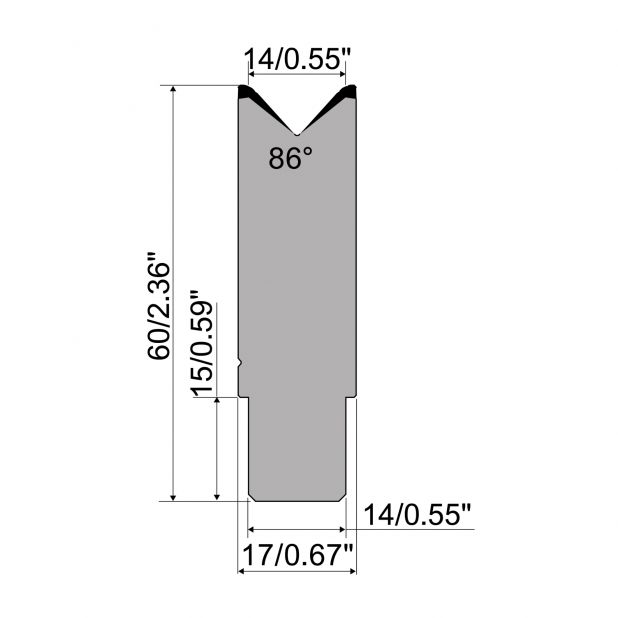

Die R1 CFH serie with working height=60mm, α=86°, Radius=2,5mm, Material=42cr, Max. load=1000kN/m.

800 mm F
