TOP.250.26.R1 TOOLS > PRESS BRAKES > Tools > Type R1: Punches > TOP150.30.R12 TOP.SP.134.28.8

TOP150.30.R12

Article No.	Length	Weight	Price
TOP150.30.R12.500	500 mm	8.75
TOP150.30.R12.500	550 frazionato

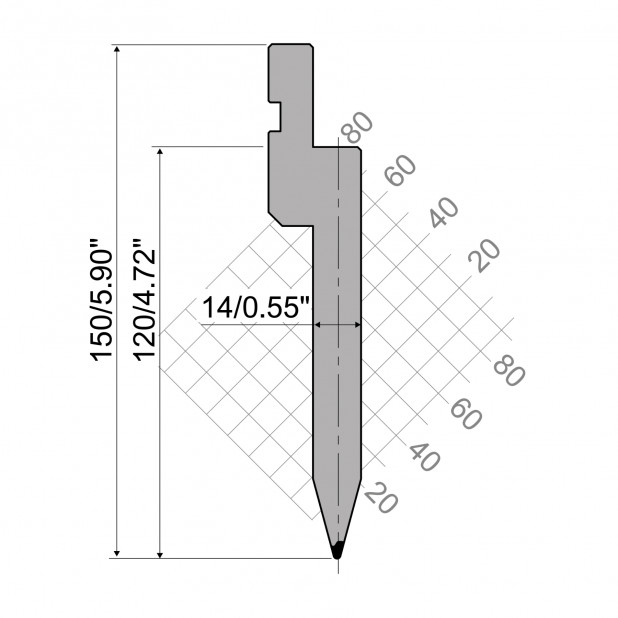

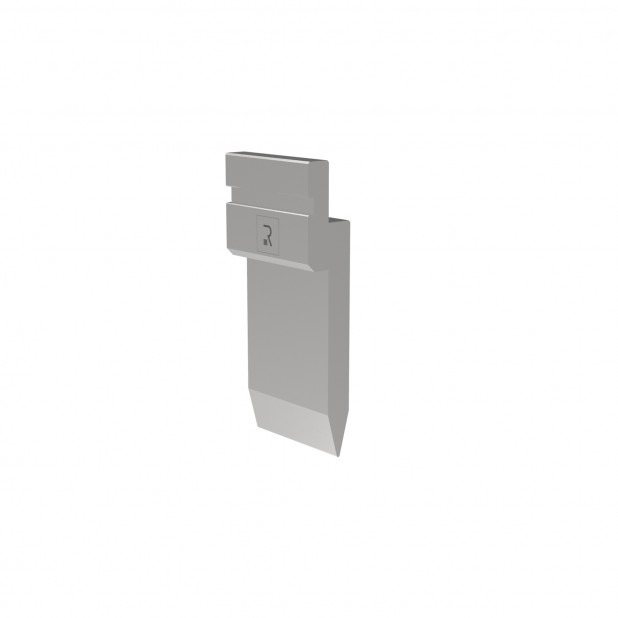

Punch R1 European type TOP Series with Working height=150mm, α=30°, Radius=1,2mm, Material=42cr, Max. load=1

Description
Features
Attachments

Punch R1 European type TOP Series with Working height=120mm, α=30°, Radius=1,2mm, Material=C45, Max. load=1000kN/m.To use with SM55.14.30/C and SM55.12.30/C

Availability	on stock
Type	R1
Family	TOP
Product type	Hemming Punch
Tonnage	1000 kN/m max.
Material	C45: 560-710 N/mm²
Height	150
Useful height	120
Degrees	30
Radius	1,2
To use with	SM55.14.30/C;SM55.12.30/C
