34300TOOLS > PRESS BRAKES > Tools > Type R1: Dies > 3400034100

34000

Article No. Length Weight Price
34000.835 835 mm 21.50
34000.415 415 mm 10.70
34000.835s 835 mm FCA 21.50

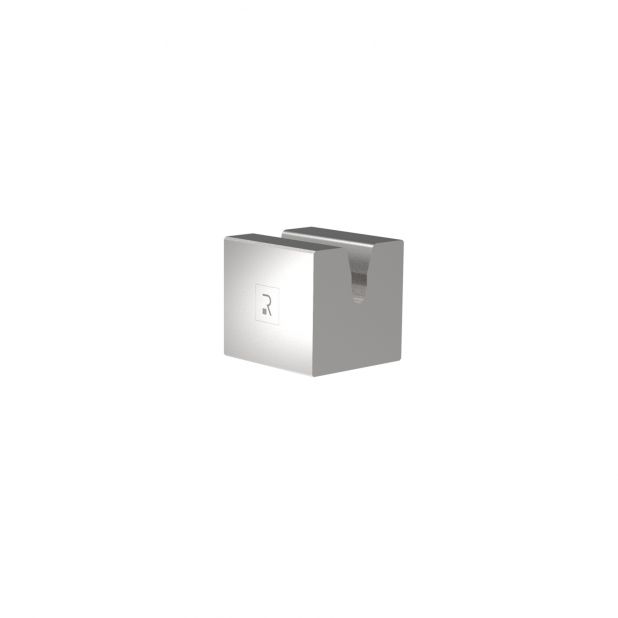

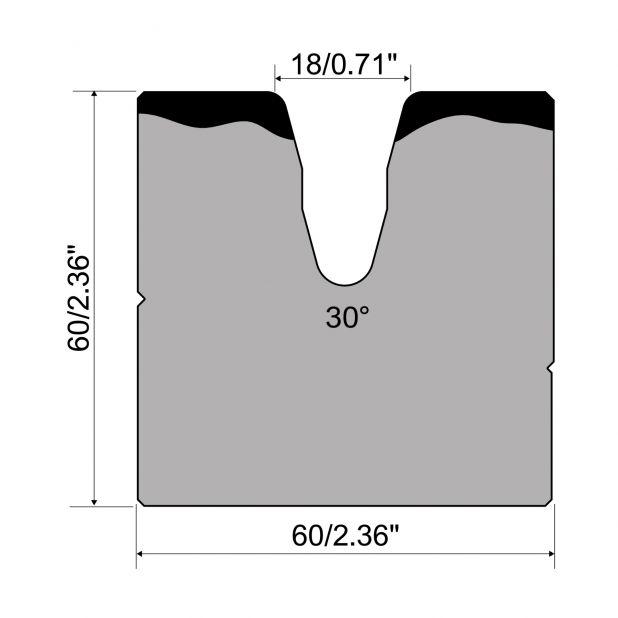

1-V die R1 European type A Series with total height=60mm, α=30°, Radius=3mm, Material=C45, Max. load=800kN/m
1-V die R1 European type A Series with total height=60mm, α=30°, Radius=3mm, Material=C45, Max. load=800kN/m
  • Description
  • Features
  • Attachments

1-V die R1 European type A Series with total height=60mm, α=30°, Radius=3mm, Material=C45, Max. load=800kN/m.

FCA 835 mm

05500

Die holder Material=C45, Max. load=1000kN/m. With 60mm base. Ideal to increase the height of the bench.
