50796TOOLS > PRESS BRAKES > Tools > Type R1: Dies > 5039650490

50396

Article No. Length Weight Price
50396.835 835 mm 10.80
50396.415 415 mm 5.30
50396.835s 835 mm FCA 10.80
Self centering 2-V die R1 European type A Series with total height=45,5mm, α=88°, Radius=0.5/0.8mm, Material
Self centering 2-V die R1 European type A Series with total height=45,5mm, α=88°, Radius=0.5/0.8mm, Material
  • Description
  • Features
  • Attachments

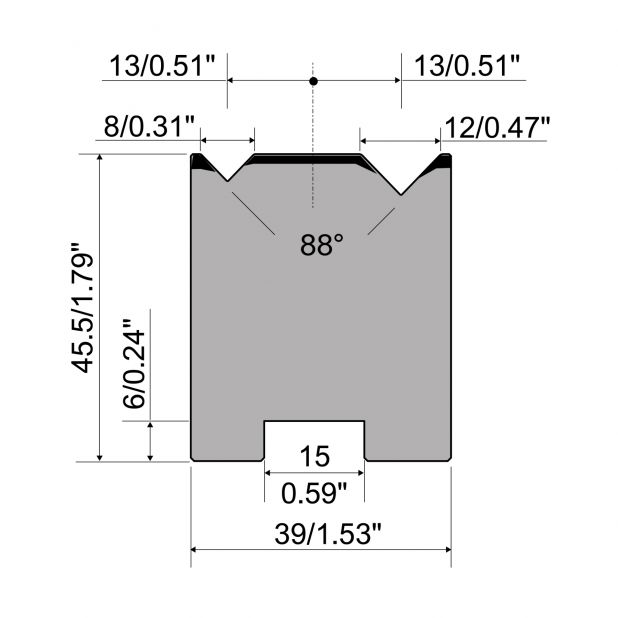

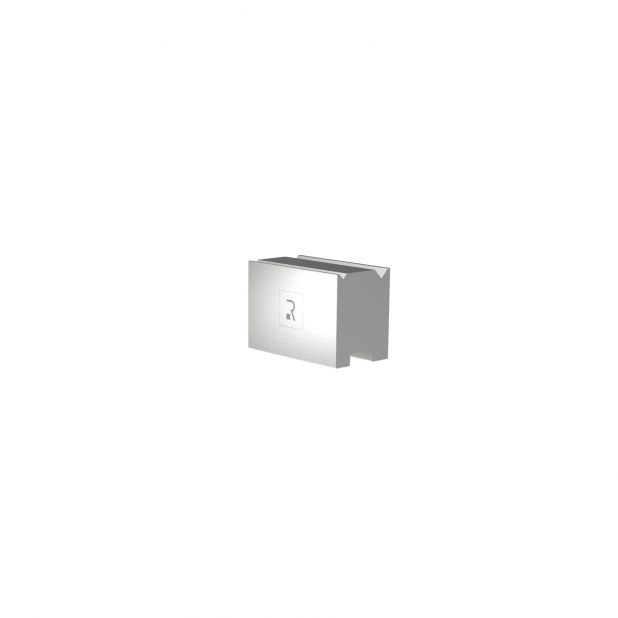

Self centering 2-V die R1 European type A Series with total height=45,5mm, α=88°, Radius=0.5/0.8mm, Material=C45, Max. load=700kN/m.

835 mm FC
795 mm FX

30000

Holder for self centering 2-V die R1 european A series with height 15mm, Material=C45, Max. load=1000kN/m.
