ROLLERI VARIO

Rolleri Vario Models Compared (price variations may apply depending on the mounting system)

VARIO 50-200 VARIO 40-260 VARIO 50-300 VARIO 50-400 VARIO 50-500
50 mm 40 mm 50 mm 50 mm 50 mm
75 mm 60 mm 75 mm 75 mm 75 mm
100 mm 80 mm 100 mm 100 mm 100 mm
125 mm 100 mm 125 mm 125 mm 125 mm
150 mm 120 mm 150 mm 150 mm 150 mm
175 mm 140 mm 175 mm 175 mm 175 mm
200 mm 160 mm 200 mm 200 mm 200 mm
  180 mm 225 mm 225 mm 225 mm
  200 mm 250 mm 250 mm 250 mm
  220 mm 275 mm 275 mm 275 mm
  240 mm 300 mm 300 mm 300 mm
  260 mm   325 mm
      350 mm
      375 mm
      400 mm

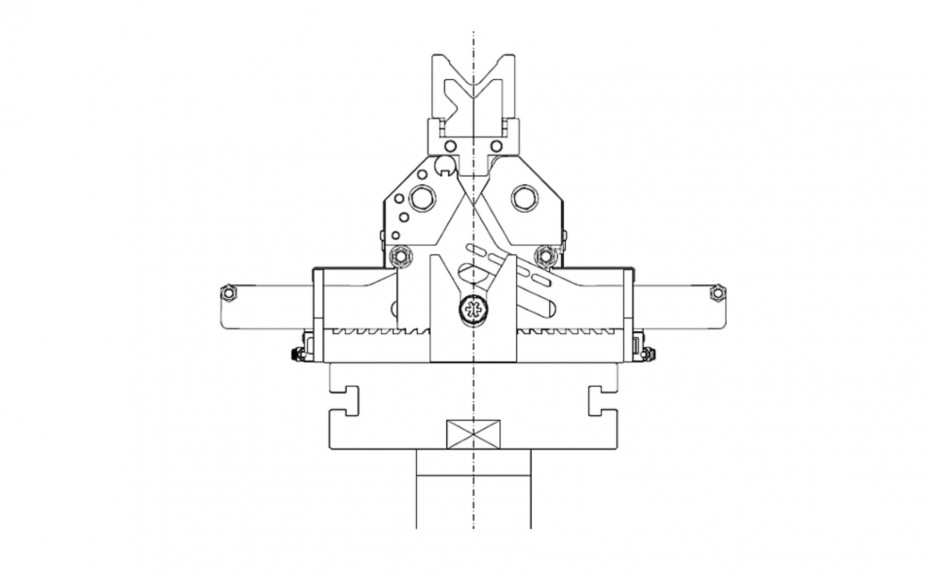

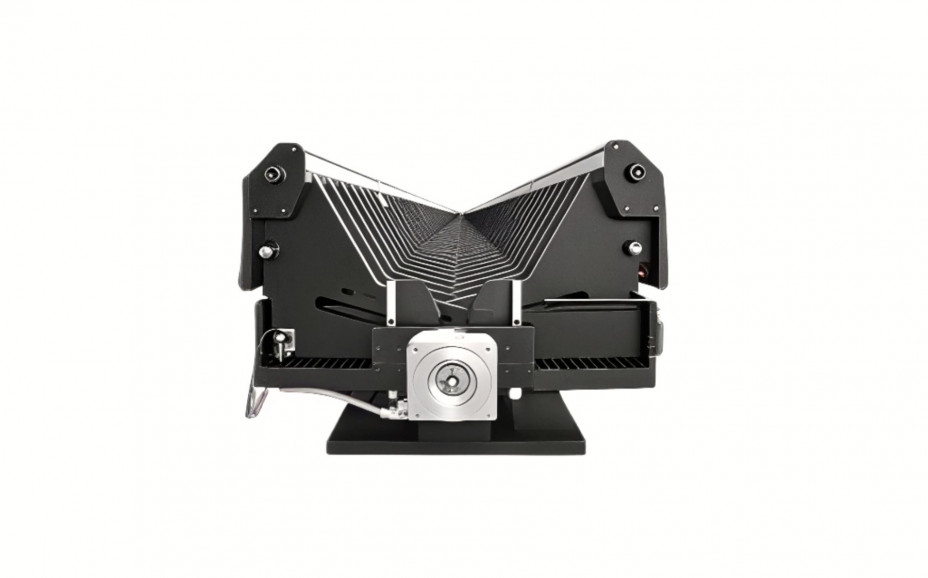

Rolleri Vario is a patented adjustable die system. We can equip a press brake with a single tool and change the system "V" opening through the CNC or manually.

Rolleri Vario main features are:

  • ease-of-use,
  • maximum load up to 3000 kN/m based on the models,
  • 60° bending angle to better manage the sprinback of the sheet metal,
  • modular structure in length.

Rolleri Vario is born t.with 1000 mm standard pieces, which can be merged in one single die with a minimum length of 1000 mm, up to the full length of the press brake.

Our models on the market are now from 1 to 12 meters length.
Single units can always be set individually, obtaining different v openings on the same press brake. Thanks to this modularity it's possible to obtain different radius and bending angles.

Its functioning its extremely practical, it's a pneumatic system which releases the whole structure from the supporting rack, in order to reach the selected "V".Once the position is set (manually or by CNC) the air pressure drop (standard pressure 6 bar) and the structure is ready to work.
The system takes 5 second to go from the narrowest to the largest "V".

The system is equipped with a device that produces an acoustic signal when the position is correct.

Rolleri Vario is built with high resistance steels and the base is induction hardened.

It's equipped with a protective sheet to quickly put on to protect the internal parts from dust and material residues.
Rolleri offers a standard system with the narrowest "V" of 40 mm up to the largest of 400 mm.
Four models are available with maximum openings of 200 mm, 260 mm, 300 mm, and 400 mm with 20 or 25 mm increments.

Every system can be manual, with an independent control unit, or connected to the press brake CNC.
It's also possible to use Rolleri Vario with an optional holder to adapt it for type R1, R2, R3, and R4 dies.



Rolleri Vario is a mix of technology, practicality, safety, and savings: average setup time drops by 85%, the operator no longer has to handle heavy tools, and the investment is much more convenient compared to the cost of all single standard dies you would need — everything is all-in-one with Rolleri Vario
