T120.12.45TOOLS > PRESS BRAKES > Tools > Type R1: Dies > T120.16.45T120.20.45

T120.16.45

Article No. Length Weight Price
T120.16.45.835 835 mm 25.00
T120.16.45.415 415 mm 12.40
T120.16.45.795s 795 mm FX 23.80
T120.16.45.805s 805 mm F 24.10

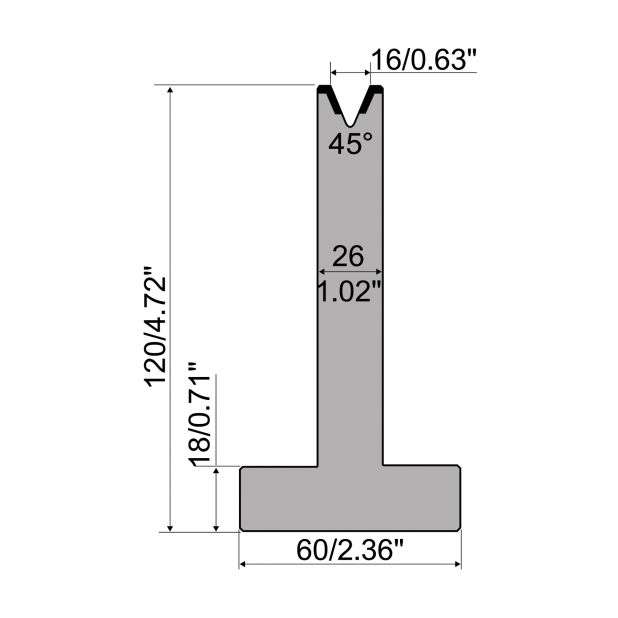

T die R1 European type with height=120mm, α=45°, Radius=2,75mm, Material=C45, Max. load=500kN/m.
T die R1 European type with height=120mm, α=45°, Radius=2,75mm, Material=C45, Max. load=500kN/m.
  • Description
  • Features
  • Attachments

T die R1 European type with height=120mm, α=45°, Radius=2,75mm, Material=C45, Max. load=500kN/m.

805 mm F
795 mm FX
