T120.20.85Products > BENDING SOLUTIONS > Tools > Type R1: Dies > T120.25.85T80.06.80

T120.25.85

Article No. Length Weight Price
T120.25.85.835 835 mm 30.00
T120.25.85.415 415 mm 14.90
T120.25.85.795s 795 mm FX 28.60
T120.25.85.805s 805 mm F 28.90

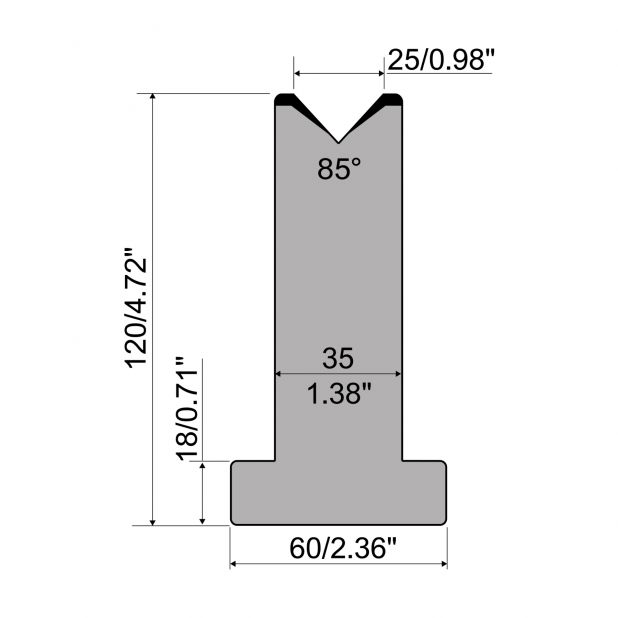

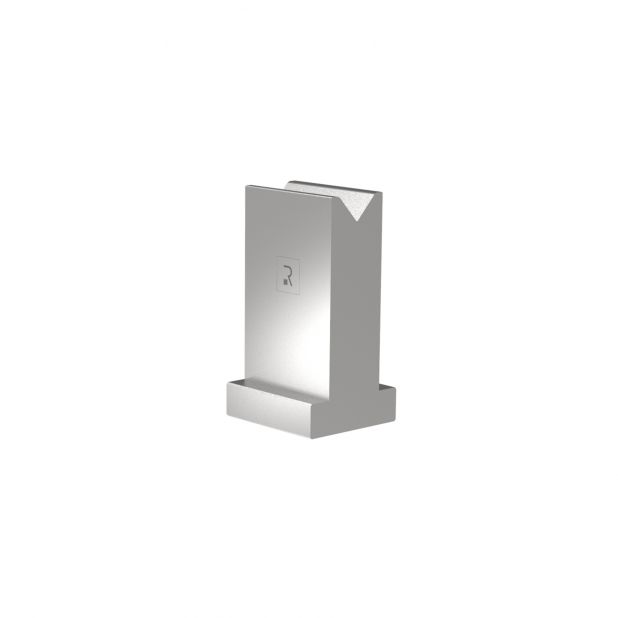

T die R1 European type with height=120mm, α=85°, Radius=3mm, Material=C45, Max. load=1000kN/m.
T die R1 European type with height=120mm, α=85°, Radius=3mm, Material=C45, Max. load=1000kN/m.
  • Description
  • Features
  • Attachments

T die R1 European type with height=120mm, α=85°, Radius=3mm, Material=C45, Max. load=1000kN/m.

805 mm F
795 mm FX
