T120.12.88Products > BENDING SOLUTIONS > Tools > Type R1: Dies > T120.16.88T120.20.88

T120.16.88

Article No. Length Weight Price
T120.16.88.835 835 mm 22.00
T120.16.88.415 415 mm 10.90
T120.16.88.795s 795 mm FX 20.90
T120.16.88.805s 805 mm F 21.20

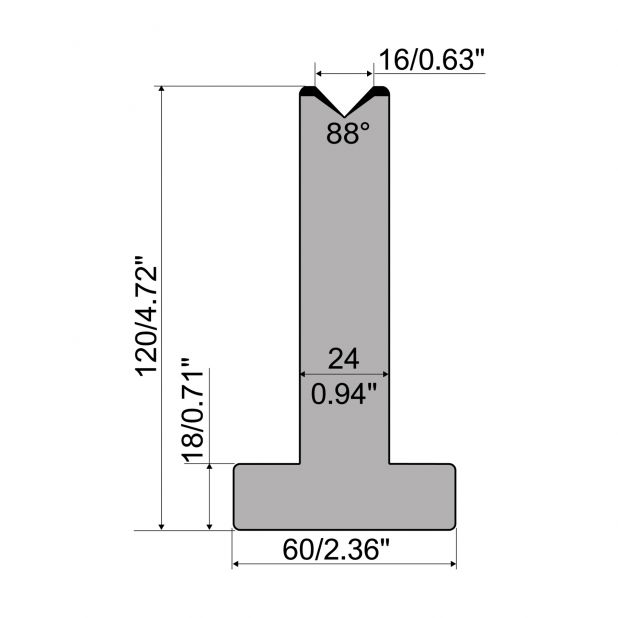

T die R1 European type with height=120mm, α=88°, Radius=2,75mm, Material=C45, Max. load=1000kN/m.
T die R1 European type with height=120mm, α=88°, Radius=2,75mm, Material=C45, Max. load=1000kN/m.
  • Description
  • Features
  • Attachments

T die R1 European type with height=120mm, α=88°, Radius=2,75mm, Material=C45, Max. load=1000kN/m.

805 mm F
795 mm FX
