T120.10.26Products > BENDING SOLUTIONS > Tools > Type R1: Dies > T120.12.26M60.85.32

T120.12.26

Article No. Length Weight Price
T120.12.26.835 835 mm 23.40
T120.12.26.415 415 mm 11.60
T120.12.26.795s 795 mm FX 22.30
T120.12.26.805s 805 mm F 22.60

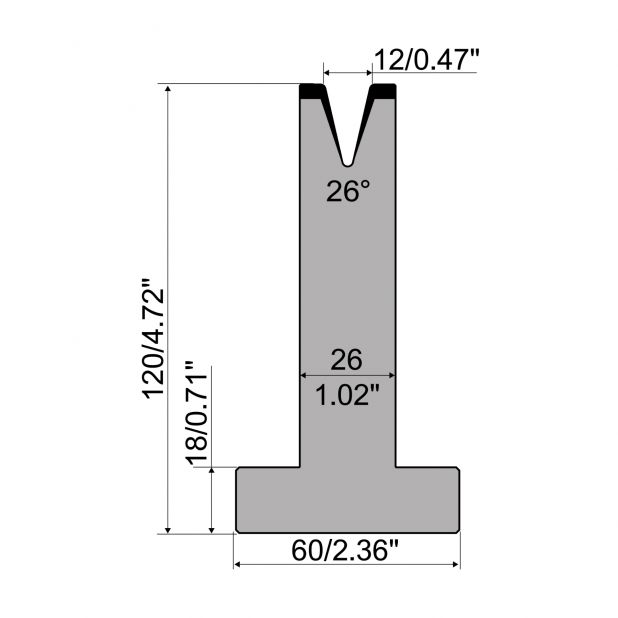

T die R1 European type with height=120mm, α=26°, Radius=1,6mm, Material=C45, Max. load=200kN/m.
T die R1 European type with height=120mm, α=26°, Radius=1,6mm, Material=C45, Max. load=200kN/m.
  • Description
  • Features
  • Attachments

T die R1 European type with height=120mm, α=26°, Radius=1,6mm, Material=C45, Max. load=200kN/m.

805 mm F
795 mm FX
