P.115.88.R06

Article No. Length Weight Price
P.115.88.R06.835 835 mm 13.00
P.115.88.R06.415 415 mm 6.50
P.115.88.R06.795s 795 mm FX 12.40
P.115.88.R06.805s 805 mm F 12.60

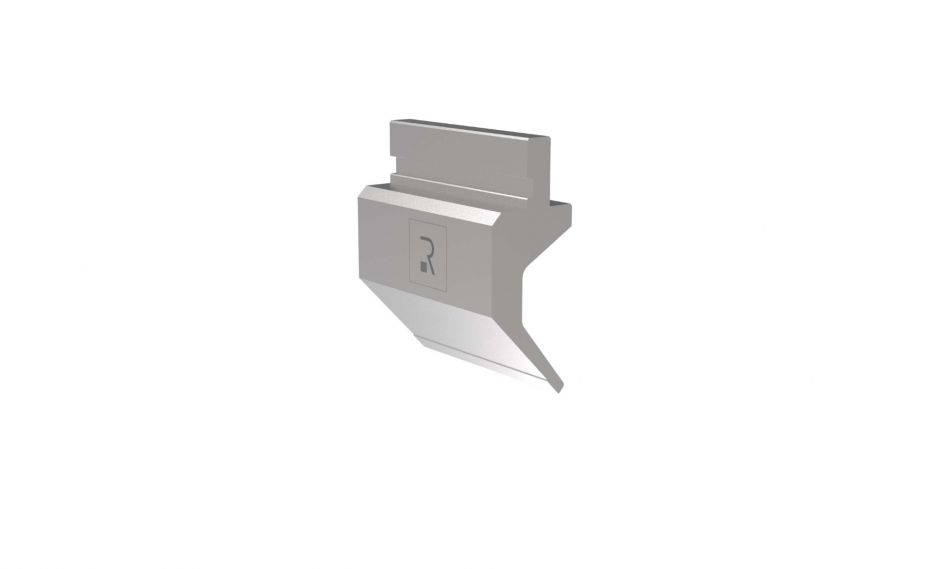

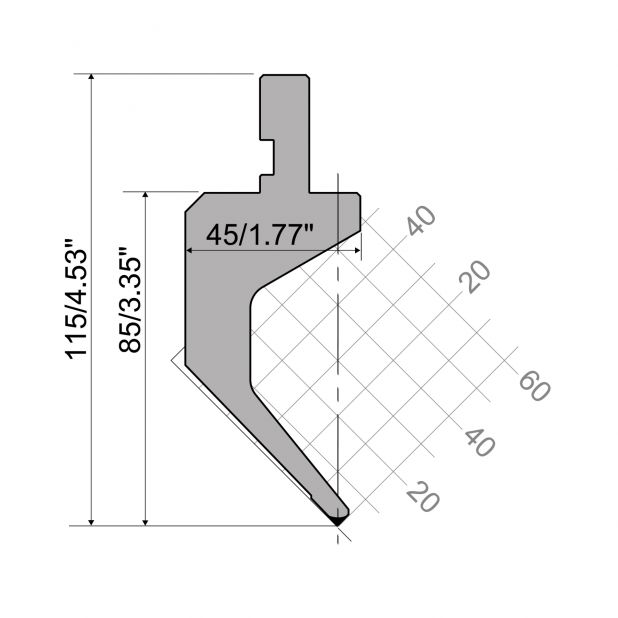

Punch R1 European type with Working height=85mm, α=88°, Radius=0,6mm, Material=42Cr, Max. load=130kN/m.
Punch R1 European type with Working height=85mm, α=88°, Radius=0,6mm, Material=42Cr, Max. load=130kN/m.
  • Description
  • Features
  • Attachments

Punch R1 European type with Working height=85mm, α=88°, Radius=0,6mm, Material=42Cr, Max. load=130kN/m.

Horn 1
795 mm FX
805 mm F
