10300TOOLS > PRESS BRAKES > Tools > Type R1: Punches > 21000CFH150.86.R02-STD

21000

Article No. Length Weight Price
21000.835 835 mm 15.30
21000.415 415 mm 7.60
21000.835s 835 mm FCA 14.60

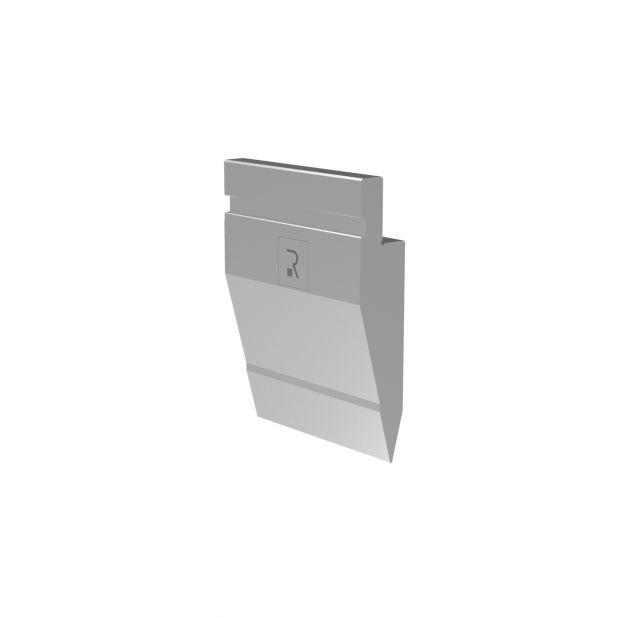

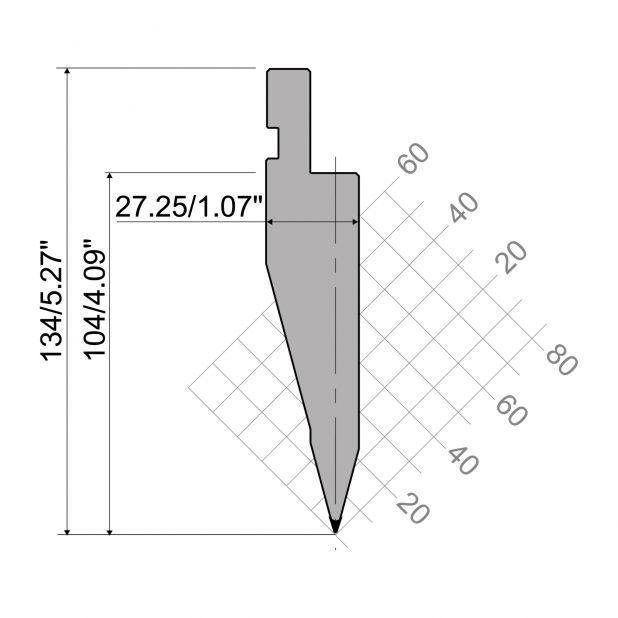

Punch R1 European type A Series with Working height=104mm, α=30°, Radius=0,65mm, Material=C45, Max. load=100
Punch R1 European type A Series with Working height=104mm, α=30°, Radius=0,65mm, Material=C45, Max. load=100
  • Description
  • Features
  • Attachments

Punch R1 European type A Series with Working height=104mm, α=30°, Radius=0,65mm, Material=C45, Max. load=1000kN/m.

Horn 5
795 mm FX
800 mm FC
