PS.120.88.R08TOOLS > PRESS BRAKES > Tools > Type R1: Punches > P.125.88.R025P.120.88.R08
Article No. | Length | Weight | Price | |
---|---|---|---|---|
P.125.88.R025.835 | 835 mm | 9.10 |
|
|
P.125.88.R025.415 | 415 mm | 4.50 |
|
|
P.125.88.R025.795s | 795 mm FX | 8.70 |
|
|
P.125.88.R025.805s | 805 mm F | 8.80 |
|

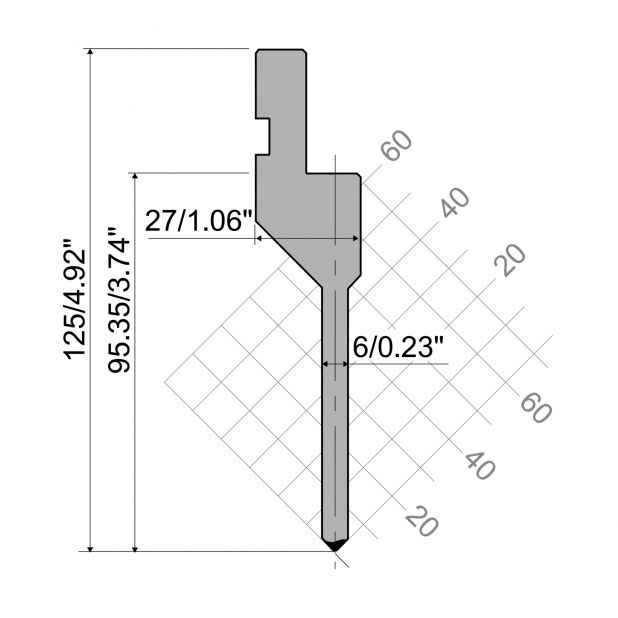

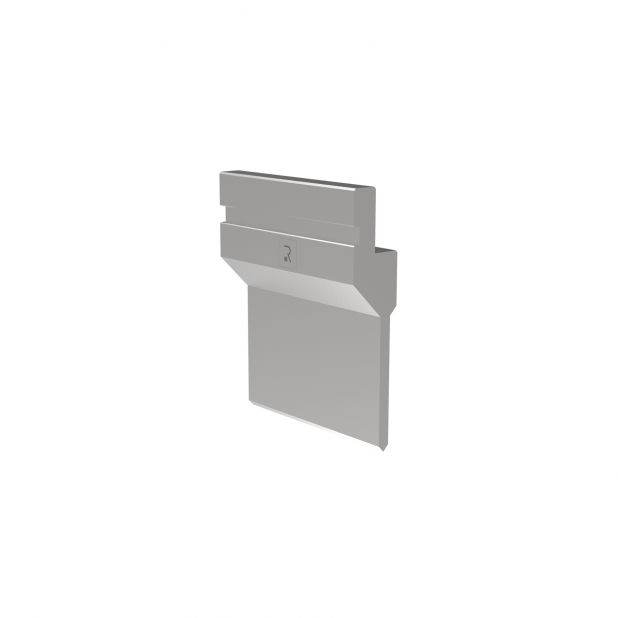

Punch R1 European type with Working height=95mm, α=88°, Radius=0,25mm, Material=42Cr, Max. load=500kN/m.
