P.110.30.R06TOOLS > PRESS BRAKES > Tools > Type R1: Punches > P.147.26.R08PU.117.26.R08

P.147.26.R08

Article No. Length Weight Price
P.147.26.R08.835 835 mm 9.90
P.147.26.R08.415 415 mm 4.90
P.147.26.R08.795s 795 mm FX 9.40
P.147.26.R08.805s 805 mm F 9.60

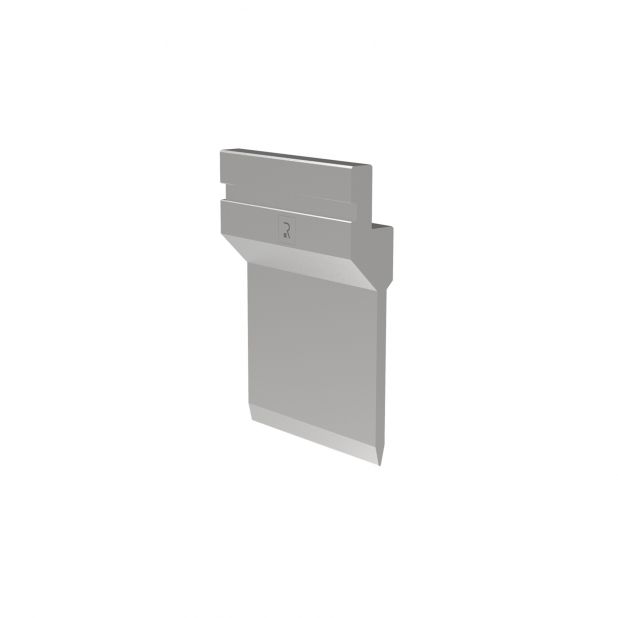

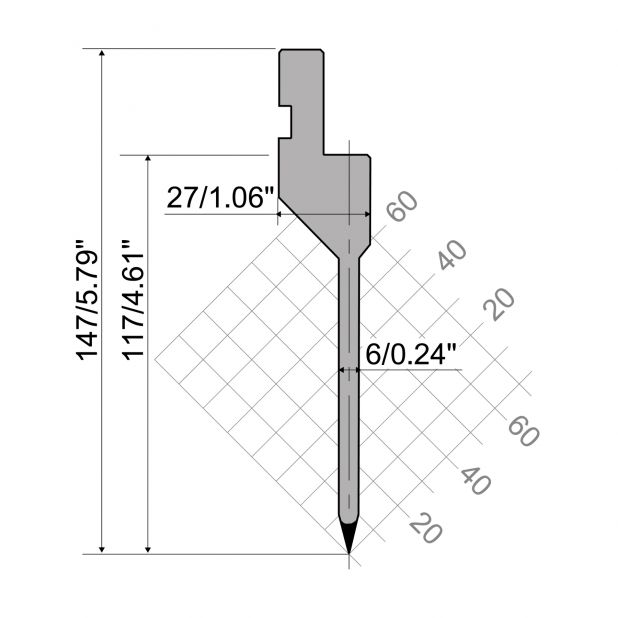

Punch R1 European type with Working height=117mm, α=26°, Radius=0,8mm, Material=42Cr, Max. load=500kN/m.
Punch R1 European type with Working height=117mm, α=26°, Radius=0,8mm, Material=42Cr, Max. load=500kN/m.
  • Description
  • Features
  • Attachments

Punch R1 European type with Working height=117mm, α=26°, Radius=0,8mm, Material=42Cr, Max. load=500kN/m.

Horn 1
795 mm FX
805 mm F
