TOP.175.75.R08TOOLS > PRESS BRAKES > Tools > Type R1: Punches > TOP.175.75.R2TOP.175.60.R08

TOP.175.75.R2

Article No. Length Weight Price
TOP.175.75.R2.525 525 mm 21.50
TOP.175.75.R2.495s 495 mm FA 20.30
TOP.175.75.R2.500s 500 mm FB 20.50
Punch R1 European type TOP Series with Working height=144,2mm, α=75°, Radius=2mm, Material=42Cr, Max. load=7
Punch R1 European type TOP Series with Working height=144,2mm, α=75°, Radius=2mm, Material=42Cr, Max. load=7
  • Description
  • Features
  • Attachments

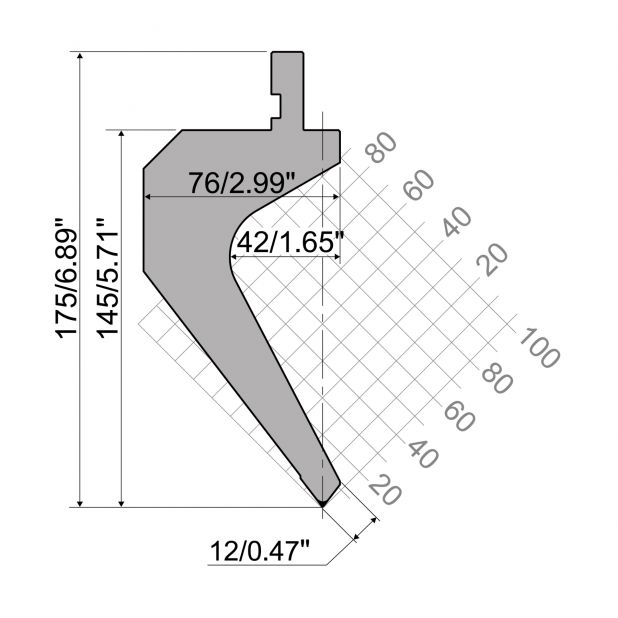

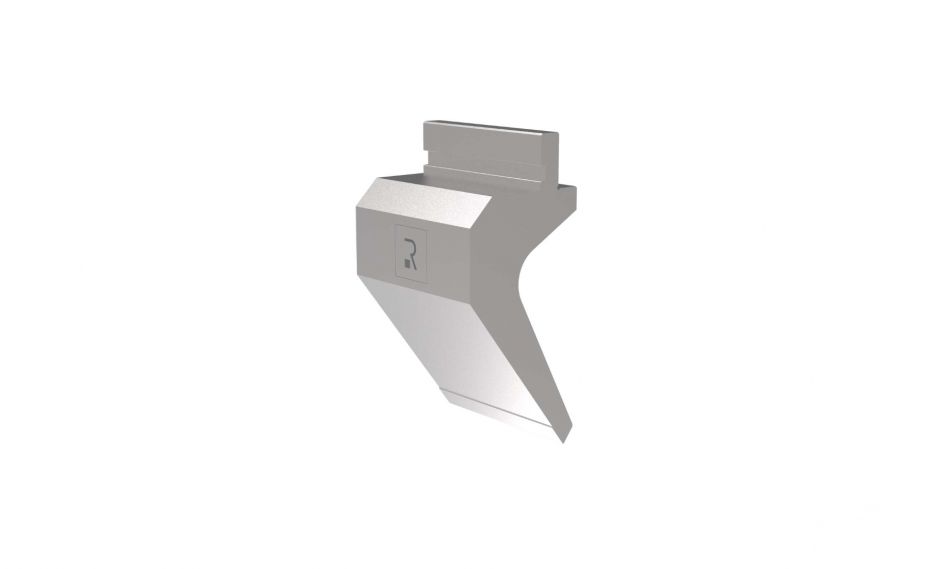

Punch R1 European type TOP Series with Working height=144,2mm, α=75°, Radius=2mm, Material=42Cr, Max. load=750kN/m.

Horn 2
495 mm FA
500 mm FB
