MSA - magnet
Extremely versatile and flexible magnetic bracket
00300TOOLS > PRESS BRAKES > Tools > Type R1: Punches > 0080010300
Article No. | Length | Weight | Price | |
---|---|---|---|---|
00800.835 | 835 mm | 9.30 |
|
|
00800.415 | 415 mm | 4.60 |
|
|
00800.835s | 835 mm FCA | 9.30 |
|

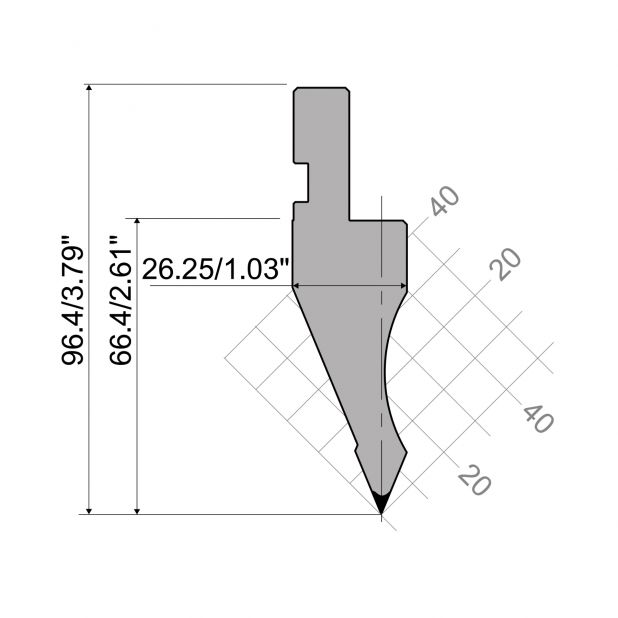

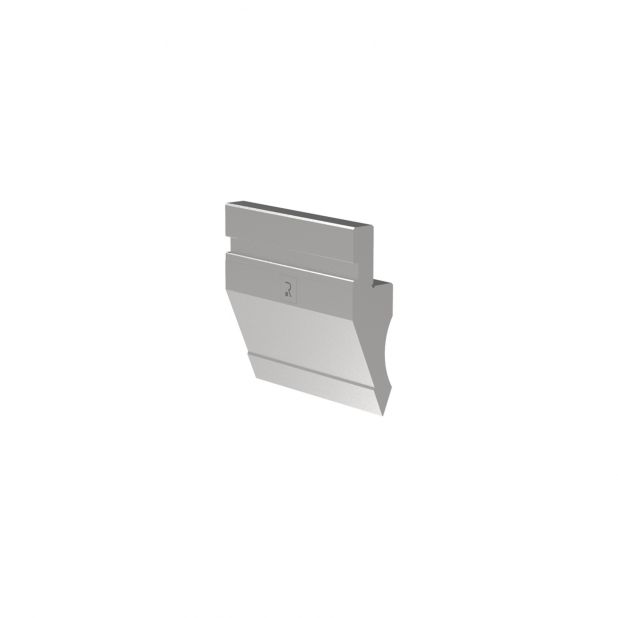

Punch R1 European type A Series with Working height=66,4mm, α=45°, Radius=0,37mm, Material=C45, Max. load=600kN/m.
Extremely versatile and flexible magnetic bracket
Universal bending line tracking system which helps the operator during the bending process with the sheet metal positioning.
