PS.134.30.R08TOOLS > PRESS BRAKES > Tools > Type R1: Punches > P.110.30.R06P.147.26.R08

P.110.30.R06

Article No. Length Weight Price
P.110.30.R06.835 835 mm 10.50
P.110.30.R06.415 415 mm 5.20
P.110.30.R06.795s 795 mm FX 10.00
P.110.30.R06.805s 805 mm F 10.10

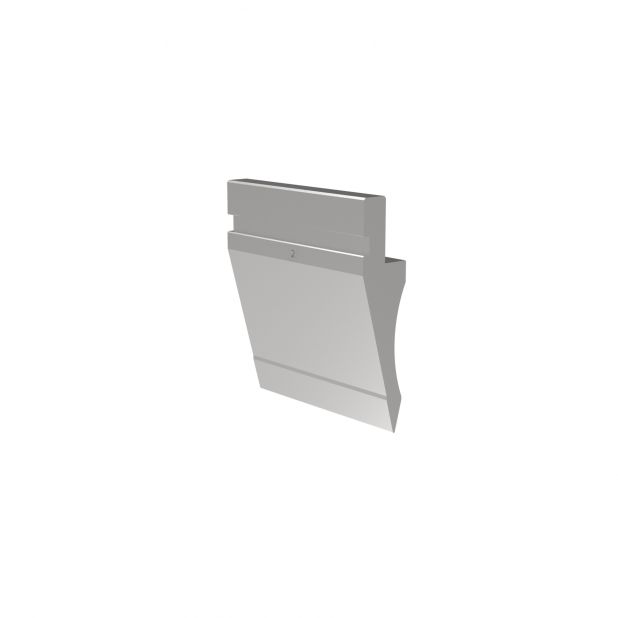

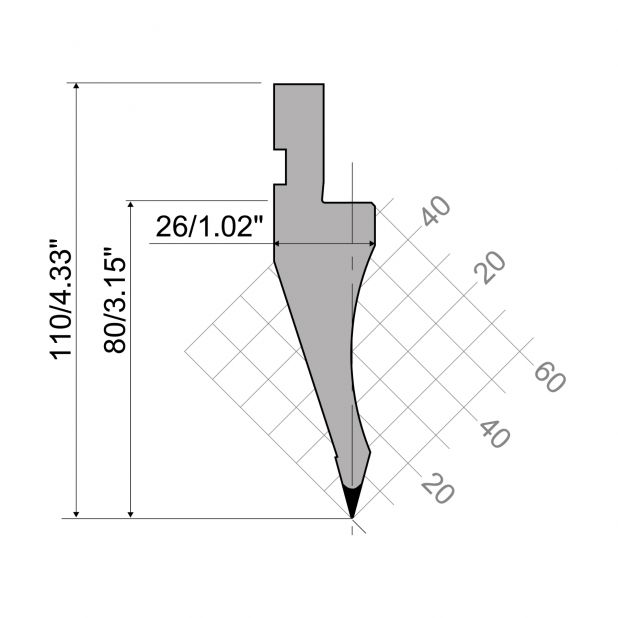

Punch R1 European type with Working height=80mm, α=30°, Radius=0,6mm, Material=C45, Max. load=500kN/m.
Punch R1 European type with Working height=80mm, α=30°, Radius=0,6mm, Material=C45, Max. load=500kN/m.
  • Description
  • Features
  • Attachments

Punch R1 European type with Working height=80mm, α=30°, Radius=0,6mm, Material=C45, Max. load=500kN/m.

Horn 1
795 mm FX
805 mm F
