20200TOOLS > PRESS BRAKES > Tools > Type R1: Punches > 2030000480

20300

Article No. Length Weight Price
20300.835 835 mm 10.00
20300.415 415 mm 5.00
20300.835s 835 mm FCA 9.60
Punch R1 European type A Series with Working height=99,91mm, α=90°, Radius=0,2mm, Material=42Cr, Max. load=3
Punch R1 European type A Series with Working height=99,91mm, α=90°, Radius=0,2mm, Material=42Cr, Max. load=3
  • Description
  • Features
  • Attachments

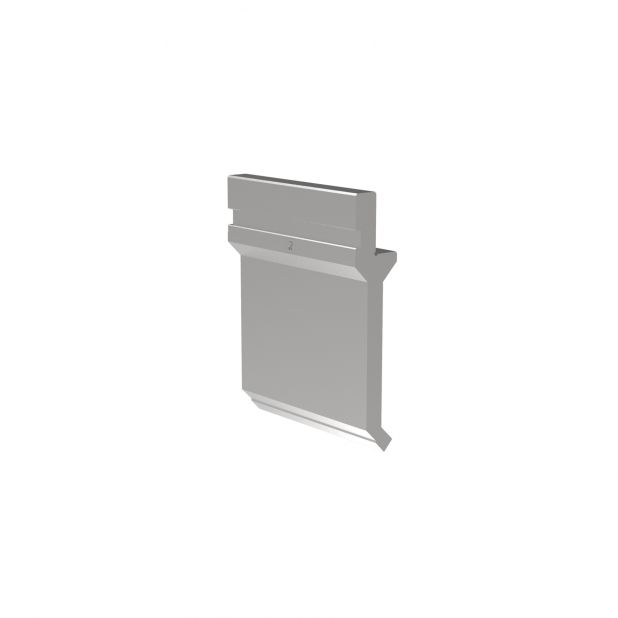

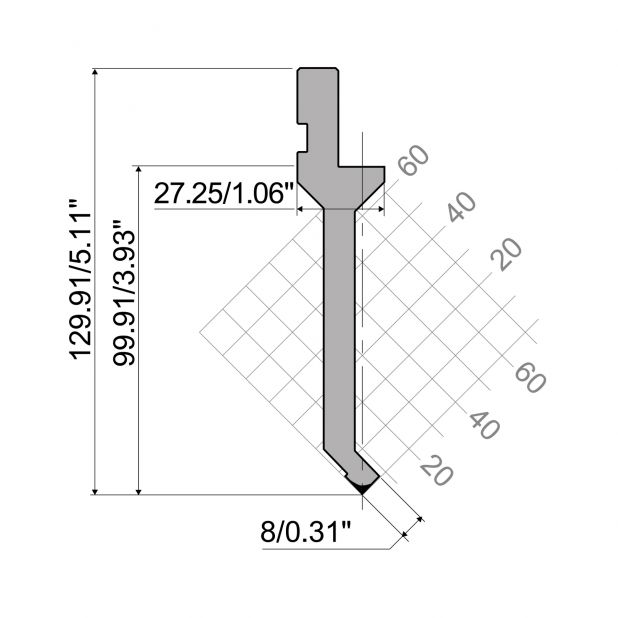

Punch R1 European type A Series with Working height=99,91mm, α=90°, Radius=0,2mm, Material=42Cr, Max. load=300kN/m.

Horn 4
795 mm FX
835 mm FCA
