45202TOOLS > PRESS BRAKES > Tools > Type R1: Punches > 4620004702

46200

Article No. Length Weight Price
46200.835s 835 mm FCA 19.60
46200.835 835 mm 19.60
46200.415 415 mm 9.80
Punch R1 European type A Series with Working height=89,91mm, α=90°, Radius=0,2mm, Material=42Cr, Max. load=7
Punch R1 European type A Series with Working height=89,91mm, α=90°, Radius=0,2mm, Material=42Cr, Max. load=7
  • Description
  • Features
  • Attachments

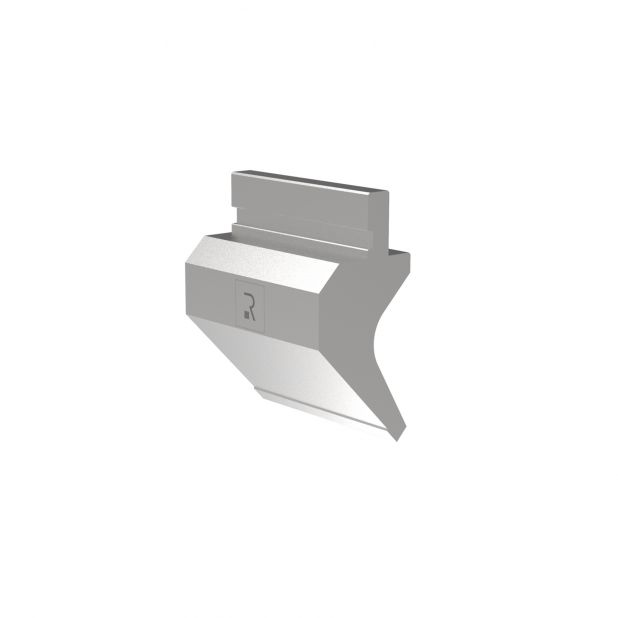

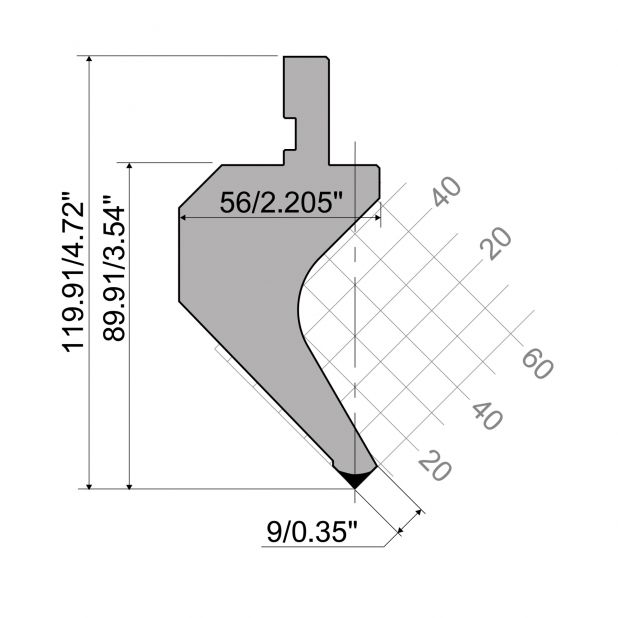

Punch R1 European type A Series with Working height=89,91mm, α=90°, Radius=0,2mm, Material=42Cr, Max. load=700kN/m.

Horn 3
795 mm FX
835 mm FCA
