ROL2 HYDRAULIC
Fast lower clamping system, Hydraulic, for R1 dies, length 150 mm
ROL2 PNEUMATIC
| Article No. | Length | Table | Type | Weight | Price | |
|---|---|---|---|---|---|---|

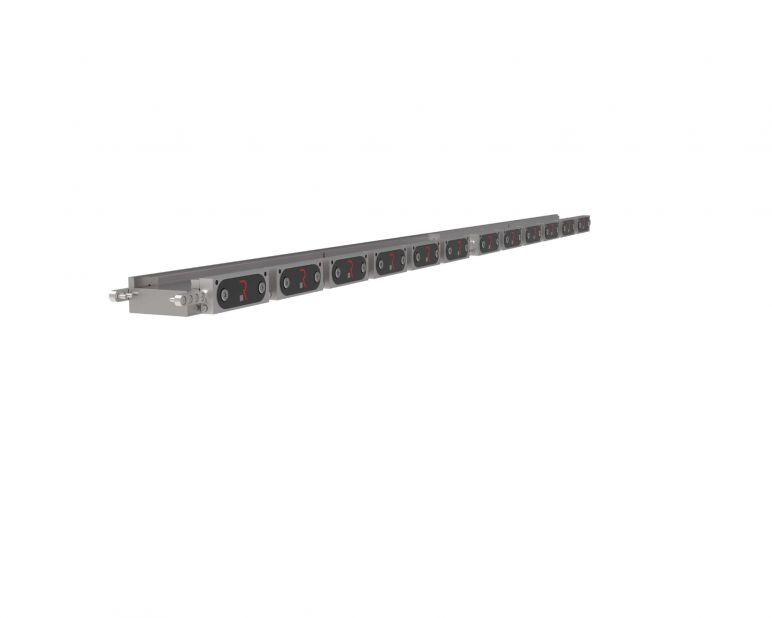

| ROL2 PN 150-60-C | 1075 mm | 60 mm | Front and rear clamp + die holder base 60 |
|
||
| ROL2 PN 150-90-C | 1075 mm | 90 mm | Front and rear clamp + die holder base 90 + inserts |
|
||
| ROL2 CLAMP1 PN 150 | 3x150mm/500 mm | 60 mm | Front and rear clamp | 31,70 |
|
|
| ROL2 CLAMP1 PN 150-90 | 3x150mm/500 mm | 90 mm | Front and rear clamp + inserts | 23,00 |
|
|
| ROL2 CLAMP1 PN-F | 150 mm | 60 mm | Front clamp |
|
||

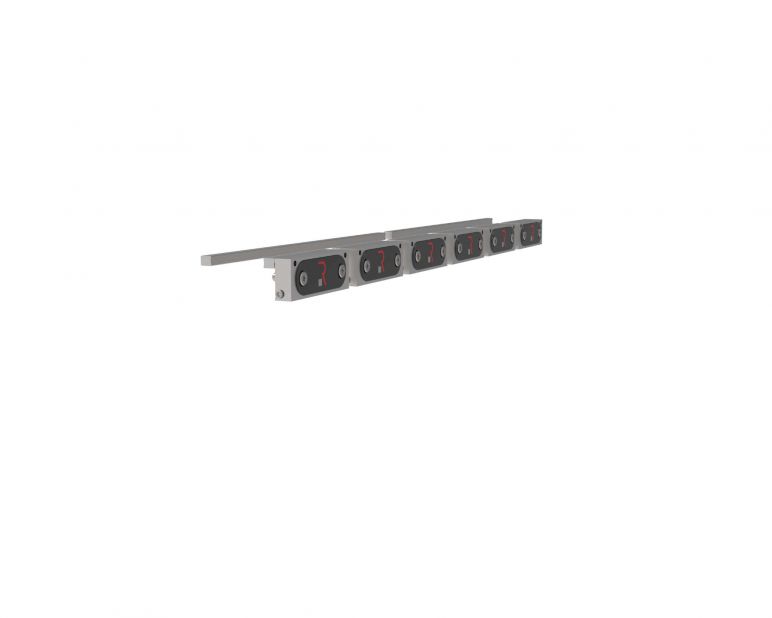

| ROL2 CLAMP1 PN 90-F | 150 mm | 90 mm | Front clamp + inserts |
|
- Description
- Features
Fast lower clamping system, pneumatic, for R1 dies, length 150 mm
ROL2 is the best system to clamp R1 type dies with 60mm 2.36'' and 90mm 3.54'' base.
Thanks to its construction, when the clamp is closed, clamping pressure is evenly distributed along the die and guarantees its perfect alignment. The main advantage of such system consists in die V opening being automatically centered. In addition to this, tooling clamping is faster than ever. Both in case an operator uses a pneumatic, hydraulic or manual version, he can start bending after a few seconds under the safest conditions.
ROL2 has been designed to complete clamping system range for R1 type tools.
This system can be mounted in brand new press brakes as well as in already operating press brakes. ROL2 means speed, quality and flexibility.
LOWER SYSTEM
ROL2 system is compatible with all press brakes with Amada-Promecam tang.
No tool modification is required
SPECIAL POLYURETHANE INSERT
ROL2 system contains a device which activates ROL2 CLAMP1 clamps. These clamps are integrated in the system and can clamp and release dies. A special polyurethane insert mounted in the clamps guarantees the perfect die alignment.
Clamping force is also evenly distributed along the tools.
SUPPLY
This system is available in manual, pneumatic and hydraulic versions. The pneumatic system is composed of pneumatic clamps L=150mm which are activated by a pneumatic driving unit or by press brake CNC.
INSTALLATION ON TABLES 60mm AND 90mm WIDE
Clamps can be installed directly to press brake table using the holes for standard clamps (hole pitch 100mm). In alternative you need to modify the hole pitch.
In order to clamp Rolleri R1 dies with 60mm 2.36'' base in tables 90mm 3.54'' wide, we supply 2 shims 15mm 0.59'' wide (with clamping pins).
The system is compatible with press brakes with automatic crowning systems.
INSTALLATION
ROL2 system is easy, innovative and, above all, flexible. To be mounted in a new press brake, it only needs a specific hole pitch and you can mount clamps directly to the table.
To be mounted in an already operating press brakes, the system is supplied with a die holder.
SAFETY
The new design enables clamping of the smallest die segments
POWER UNIT: PDU MOLT
- Controls air pressure at entrance & at end of line of circuit
- Multiplies air from compressor to ensure best clamp closure
- Gives electric signal to cnc in case of lowering pressure, setting press brake in alarm stop
- Every intermediate is connected to each other by pneumatich hoses and they need a pressure from 12 to 16 bar (depends on different models) in order to ensure the best tightening force
- TOP VERSION available, with a resistant protective case
ROL2 MANUAL
Fast lower clamping system, manual, for R1 dies, length 150 mm
