Intermediates and Punch Adapters
Rolleri intermediates and adapters for punches

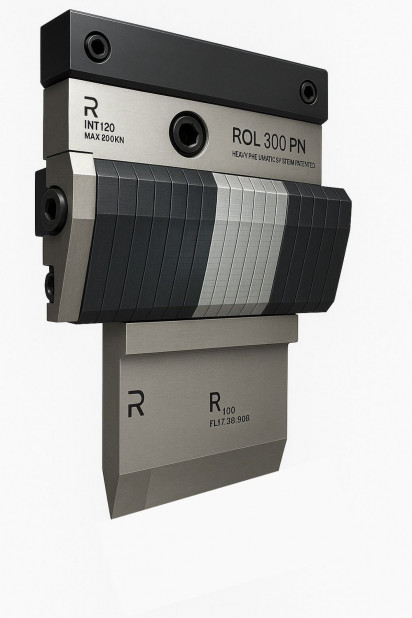

ROL300 PNEUMATIC
| Article No. | With intermediate | Price | |
|---|---|---|---|
| ROL300 INT100 | Intermediate H=100mm |
|
|
| ROL300 INT120 | Intermediate H=150mm |
|
|
| ROL300 INT150 | Intermediate H=150mm axis 20mm |
|
- Description
- Features
A rapid pneumatic locking system for R1-European style punches. Very easy release, recall of the tools in the stop. Thanks to the bracket composed of independent 5mm blades, a very good locking of the fractionated tools can be obtained. Very high locking force.
(excluding packaging and transport)
ROL300 represents the patented system created by Rolleri for a safe, vertical tool change of all type R1 tools. While the Extreme version may be adopted for all the standard intermediates (H100, H120, H150) and with 7 or 20 mm axes (Z1 and Z2), The Power version was developed with the aim of providing a single clamping system that could work with two different types of power supply.
With ROL300 Pneumatic we can control the clamp movement both pneumatically and hydraulically with the same system, as all the connection and the components are standardized in order to offer an easy, safe and economical solution.
This innovative clamping system can satisfy every need in terms of final application: it’s suitable for first equipment of new press brakes and also to renew the equipment of older machines.
1.Pneumatic
2.Vertical insertion
3.Compact clamp
4.Automatic alignment
5.Quick and easy release
6.Safe system with anti-fall
7.Cheap
UPPER SYSTEM
Rol200 patented system is compatible with all press brakes with Amada-Promecam type tang. No tool modification is necessary.
TOOL CHANGE
The front clamp allows a quick, vertical tool change.
Tools are mounted and dismounted by a special movement wich ensures a safe anti-fall system and accelerate the tools setup operation.
AUTOMATIC ALIGNMENT

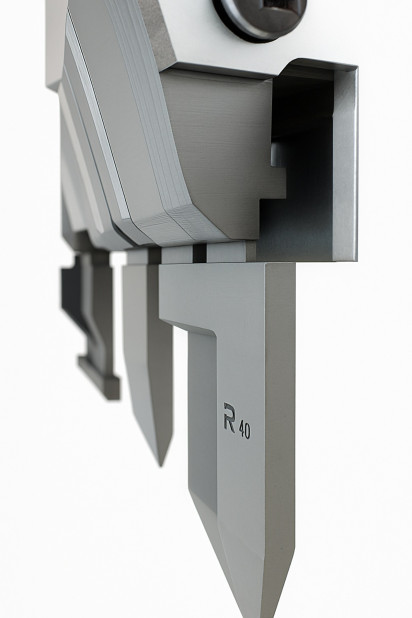

All these clamping systems lift and seat punches automatically against the intermediate and guarantee their perfect alignment.
SAFETY
Anti-fall system “full safety” for all R1 type tools without modifications.
POWER SUPPLY
System available in pneumatic, hydraulic and manual version.
INSTALLATION
Its installation is quick and easy, as the system is mounted on Rolleri Standard intermediates. No press brake modification are needed
ROL300 manual system is really easy to use thanks to a central controlled stroke screw wich allows a quick and safe tool tightening.
The intermediate does not need a connection to external devices, that means a extremely rapid installation.
ROL200 MANUAL KDS
Manual upper fast clamping system with double clamp (front and rear) for Type R1 tools, 150mm length. Max. load 1000 kN/m
