ROL TA/R2/PN
| Article No. | Length | Price | |
|---|---|---|---|
| ROL TA R2 PN 1020 | 1020 mm |
|
|
| ROL TA R2 PN 1530 | 1530 mm |
|
|
| ROL TA R2 PN 2040 | 2040 mm |
|
|
| ROL TA R2 PN 2550 | 2550 mm |
|
|
| ROL TA R2 PN 3060 | 3060 mm |
|
|
| ROL TA R2 PN 3570 | 3570 mm |
|
|
| ROL TA R2 PN 4080 | 4080 mm |
|
|
| ROL TA R2 PN 4590 | 4590 mm |
|
|
| ROL TA R2 PN 5100 | 5100 mm |
|
|
| ROL TA R2 PN 5610 | 5610 mm |
|
|
| ROL TA R2 PN 6120 | 6120 mm |
|
- Description
- Features

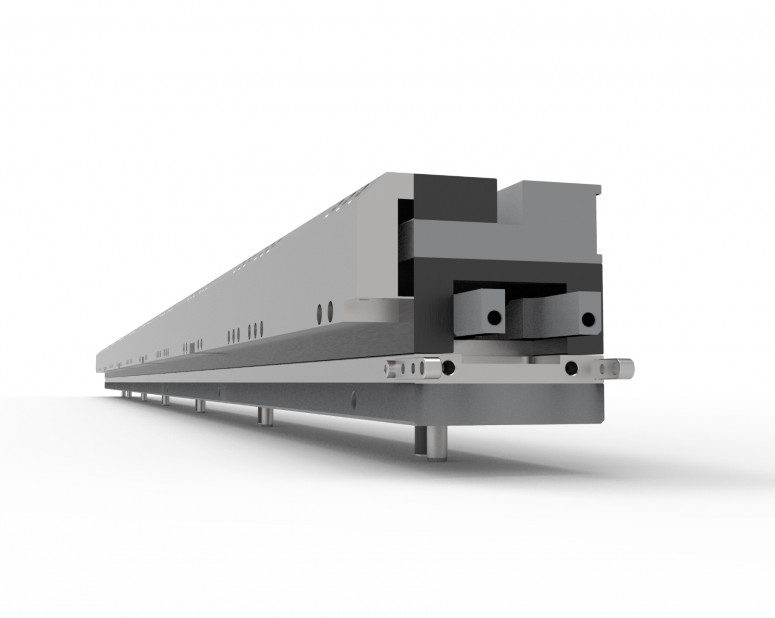

Motorized crowning table in C45 hardened and ground. Pneumatic clamping for R2-R3-R4-R5 dies. max.Load 2000 kN/m.
Crowning tables enable mechanical compensation of any press brake deflection. Such deflection is directly proportional to bending length and to the ratio between sheetmetal thickness and die V opening.
Rolleri crowning table is composed of a bar made of special steel opposite to a wedge row.
Each wedge can be individually set to compensate better small working areas.
The bar can be activated manually or automatically thanks to a motoreducer connected to press brake CNC.
Crowning table setup is very simple and fast.
Every table is manufactured according to press brake features in order to improve its activity and integration with a press brake.
Rolleri offers several table versions according to the tang of dies to be clamped.
LOWER SYSTEM
Crowning tables enable mechanical compensation of any press brake deflection
CLAMPING
Hydraulic or pneumatic clamping. Possibility to compensate the whole press brake length or only some areas of it thanks to independent wedges
ADJUSTMENT
The bar is automatically activated thanks to a motoreducer connected to press brake CNC.
INSTALLATION
Our tables are supplied with all necessary accessories to be mounted and lined up perfectly with a press brake upper beam.
AVAILABLE SERVICES
- Possibility to have the same hole pitch present on the press brake table
- Possibility to clamp dies with different tang type
- Motor is positioned as standard on the right of operator's side; on request it can be positioned on the left.
