W ROL PNEUMATIC C45
Upper fast clamping system, pneumatic, in 42CrMo4 for R2 tools, length from 1020 to 6120 mm. max load 1800 kN/m head thrust and 2500 kN/m shoulder thr…
W ROL PNEUMATIC 42CR
| Article No. | Length | Price | |
|---|---|---|---|
| W ROL TD PN 1020/AW0 SUPREME | 1020 mm |
|
|
| W ROL TD PN 1530/AW0 SUPREME | 1530 mm |
|
|
| W ROL TD PN 2040/AW0 SUPREME | 2040 mm |
|
|
| W ROL TD PN 2550/AW0 SUPREME | 2550 mm |
|
|
| W ROL TD PN 3060/AW0 SUPREME | 3060 mm |
|
|
| W ROL TD PN 3570/AW0 SUPREME | 3570 mm |
|
|
| W ROL TD PN 4080/AW0 SUPREME | 4080 mm |
|
|
| W ROL TD PN 4590/AW0 SUPREME | 4590 mm |
|
|
| W ROL TD PN 5100/AW0 SUPREME | 5100 mm |
|
|
| W ROL TD PN 5610/AW0 SUPREME | 5610 mm |
|
|
| W ROL TD PN 6120/AW0 SUPREME | 6120 mm |
|
- Description
- Features
Upper fast clamping system, pneumatic, in C45 hardened for R2 tools, length from 1020 to 6120 mm. max load 1800 kN/m head thrust and shoulder thrust.

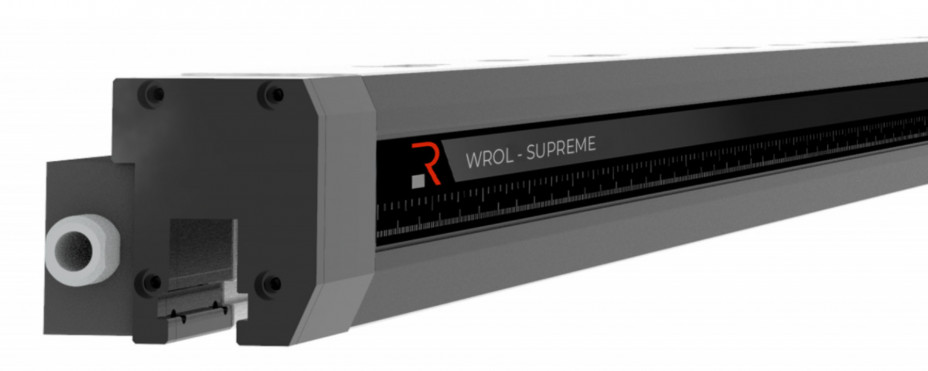

WROL clamping systems represent an evolution of R2 New Standard. They look like long beams in one solid piece with a new structural and aesthetic design. Every WROL undergoes heating treatment to give proper hardness to the contact surfaces of the system with tooling. According to the necessary capacity you can choose among Power, Supreme and Extreme line. Several lengths are available from 1100mm (3.608 ft) to 6100mm (20.131 ft) for any press brake. You can also retrofit a press brake with R1 type tang to R2 New Standard and gain some daylight thanks to the limited working height of WROL being only 80mm 3.15''. In this version you can choose between AWP version (fix) and AWPC with crowning wedges.
The appearance has been improved by reducing the overall dimensions with ergonomic advantages too and by mounting LED bars for the tool positioning or for on/off signal.
On request, the WROL system is also available with R1 upper system and R1 with crowning wedge (with extra charge).
UPPER SYSTEM
WROL clamping systems are for R2 New Standard tools. They can also be used to retrofit a R1 type press brake to clamp R2 New Standard tooling.
TOOL
WROL clamping system guarantees the maximum flexibility, as punches can be mounted backward.
TOOL CHANGE
Punches with ROL1 or with Quick Lock system can be inserted vertically, whereas punches with safety pins can be slided in horizontally.
ALIGNMENT
All WROL systems seat punches automatically both if they have head thrust and shoulder thrust.
SAFETY
Equipped with the antifall system "full safety" for all R2 and R4 (W series) tooling with Quick Lock or with safety pins
SUPPLY
The system is available in pneumatic and hydraulic versions.
INSTALLATION
WROL systems can be mounted to the upper beam thanks to holes with standard pitch. TX enables any correction along the X axis. AWP and AWPC models can be easily mounted without any modification of the upper beam.
Instructions to connect the system with press brake CNC are given in the user manual.
TX
Rolleri adjustment system during installation is very useful to adjust the overall beam length.
The subsequent advantage is the correct position of the bending axis in relation to the backgauges. Thanks to this, precision and repeatability are guaranteed for any profile.
POWER UNIT: PDU MOLT
- Controls air pressure at entrance & at end of line of circuit
- Multiplies air from compressor to ensure best clamp closure
- Gives electric signal to cnc in case of lowering pressure, setting press brake in alarm stop
- Every intermediate is connected to each other by pneumatich hoses and they need a pressure from 12 to 16 bar (depends on different models) in order to ensure the best tightening force
- TOP VERSION available, with a resistant protective case
