ROL GRIP TELESCOPIC

(excluding packaging and transport)

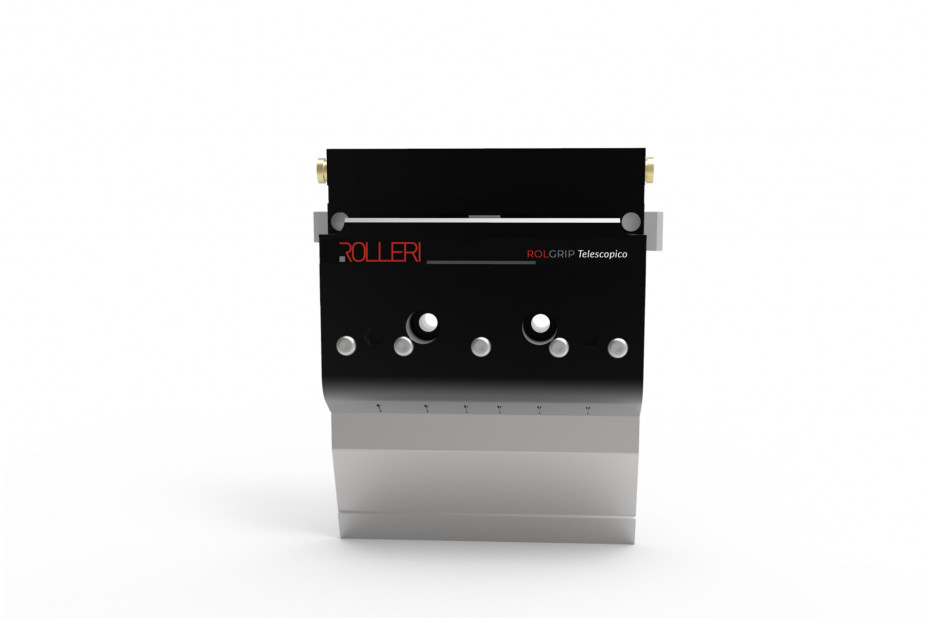

With the Rolgrip TELESCOPIC system, positioning and centering take place automatically while the punches are clamped.

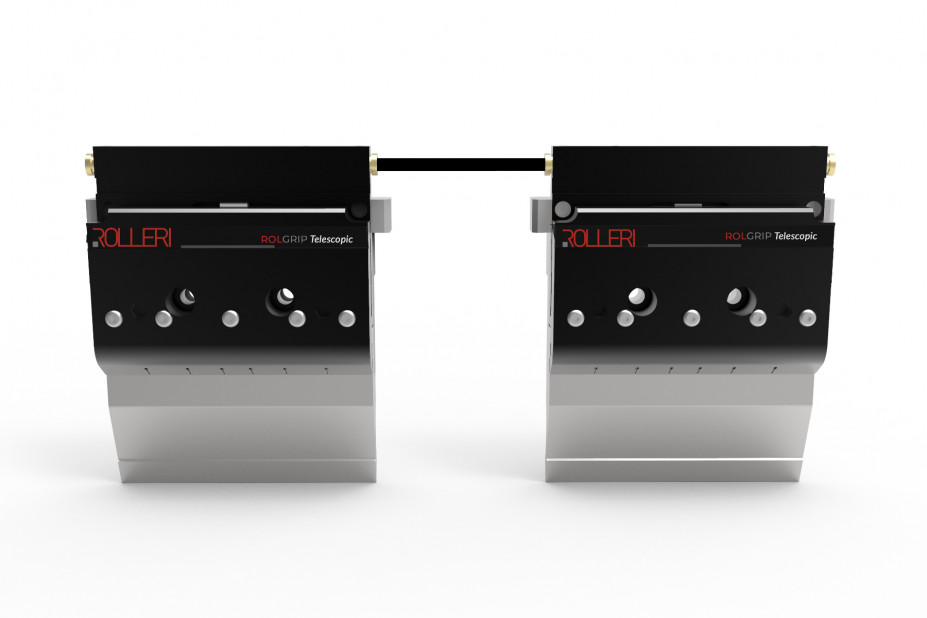

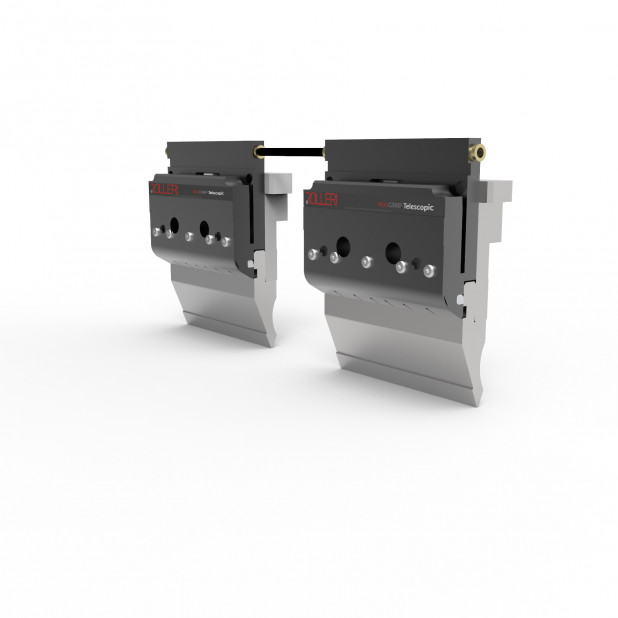

The system is equipped with a telescopic tube which allows a large lateral movement of the modules.

Article No. Type Price
ROL GRIP PN TELESCOPIC INT100 ROL GRIP TELESCOPIC pneumatic system with intermediate H=100mm
ROL GRIP PN TELESCOPIC INT150 ROL GRIP TELESCOPIC pneumatic system with intermediate H=150mm
ROL GRIP PN TELESCOPIC INT120-40 ROL GRIP TELESCOPIC pneumatic system with intermediate H=120mm with 20mm axis
ROL GRIP PN TELESCOPIC INT210-40 ROL GRIP TELESCOPIC pneumatic system with intermediate H=210mm with 20mm axis
ROL GRIP PN TELESCOPIC INT210 ROL GRIP TELESCOPIC pneumatic system with intermediate H=210mm

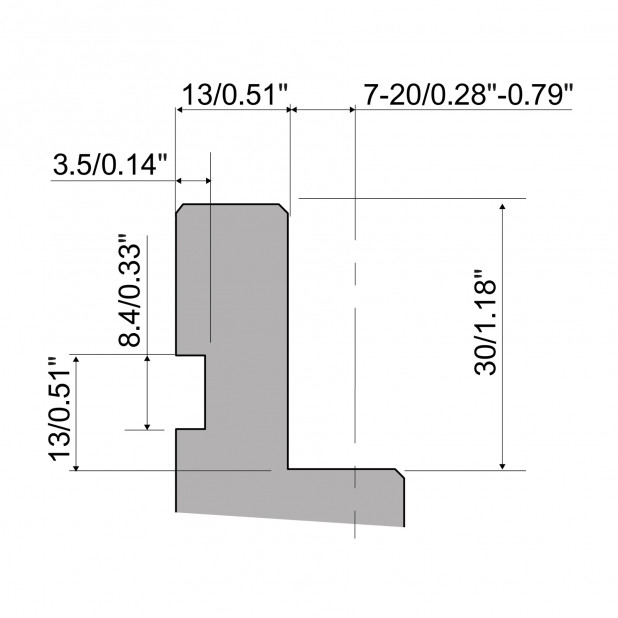

R1 tools tang
  • Description
  • Features
  • Attachments

Automatic pneumatic clamping system for upper tools. Compatible with all press brakes with Amada-Promecam type tang.

UPPER TOOLS

Automatic pneumatic clamping system for upper tools.

TECHNICAL INFORMATION

Clamping height=100mm.
Bending axis at 7mm.
Also available with 20mm axis and with different intermediate heights (H=120mm, H=150mm).

VERTICAL TOOL CHANGE

Vertical tool change of standard tool European type and automatic alignment.

SUPPLY

Air connection with stainless steel telescopic pipe (patented).

DOUBLE ORIENTATION

Possibility of mounting the tool reverse (manual clamping from operator side) with manual clamp 11008 (optional).
