Intermediates and Punch Adapters
Rolleri intermediates and adapters for punches
ROL200 PNEUMATIC
| Article No. | With intermediate | Price | |
|---|---|---|---|
| ROL200 PN INT100 FISSO | Intermediate H=100mm (without crowning wedge) |
|
|
| ROL200 PN INT100 | Intermediate H=100mm |
|
|
| ROL200 PN INT120 | Intermediate H=120mm |
|
|
| ROL200 PN INT150 | Intermediate H=150mm |
|
|
| ROL200 PN INT120-40 | Intermediate H=120mm axis 20mm |
|
|
| ROL200 PN INT150-40 | Intermediate H=150mm axis 20mm |
|
|
| ROL200 PN INT120HD | Intermediate H=120mm (heavy duty) |
|
|
| ROL200 PN INT120-40HD | Intermediate H=120mm axis 20mm (heavy duty) |
|
|
| ROL200 PN INT150HD | Intermediate H=150mm (heavy duty) |
|
- Description
- Features

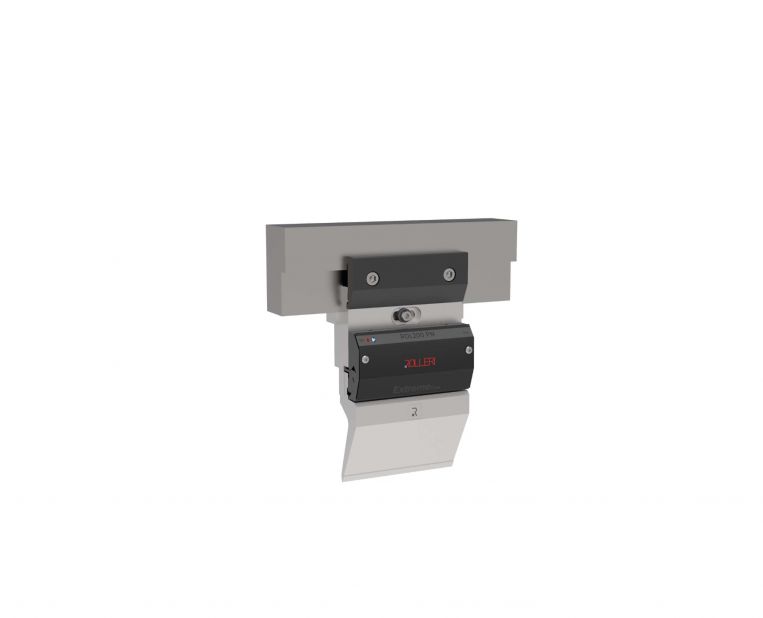

Pneumatic upper fast clamping system with front clamp for Type R1 tools, 150mm length. Max. load 1000 kN/m
ROL200 represents the patented system created by Rolleri for a safe, vertical tool change of all type R1 tools. While the Extreme version may be adopted for all the standard intermediates (H100, H120, H150) and with 7 or 20 mm axes (Z1 and Z2), The Power version was developed with the aim of providing a single clamping system that could work with two different types of power supply.
With ROL200 Power we can control the clamp movement both pneumatically and hydraulically with the same system, as all the connection and the components are standardized in order to offer an easy, safe and economical solution.
This innovative clamping system can satisfy every need in terms of final application: it’s suitable for first equipment of new press brakes and also to renew the equipment of older machines.
UPPER SYSTEM
Rol200 patented system is compatible with all press brakes with Amada-Promecam type tang. No tool modification is necessary.
TOOL CHANGE
The front clamp allows a quick, vertical tool change.
Tools are mounted and dismounted by a special movement wich ensures a safe anti-fall system and accelerate the tools setup operation.
AUTOMATIC ALIGNMENT
All these clamping systems lift and seat punches automatically against the intermediate and guarantee their perfect alignment.
SAFETY
Anti-fall system “full safety” for all R1 type tools without modifications.
POWER SUPPLY
System available in pneumatic, hydraulic and manual version.
INSTALLATION
Its installation is quick and easy, as the system is mounted on Rolleri Standard intermediates. No press brake modification are needed.
POWER UNIT: PDU MOLT
- Controls air pressure at entrance & at end of line of circuit
- Multiplies air from compressor to ensure best clamp closure
- Gives electric signal to cnc in case of lowering pressure, setting press brake in alarm stop
- Every intermediate is connected to each other by pneumatich hoses and they need a pressure from 12 to 16 bar (depends on different models) in order to ensure the best tightening force
- TOP VERSION available, with a resistant protective case
ROL200 PNEUMATIC KDS
Pneumatic upper fast clamping system with double clamp (front and rear) for Type R1 tools, 150mm length. Max. load 1000 kN/m
