TOOLS > PRESS BRAKES > Tools > Type R5: Punches > ASP.250.85.R59ASP.250.85.R125

ASP.250.85.R59

Article No. Length Weight Price
ASP.250.85.R59.415 415 mm 33.1 kg
ASP.250.85.R59.795s 795 mm FX 63.3 kg
  • Description
  • Features
  • Attachments

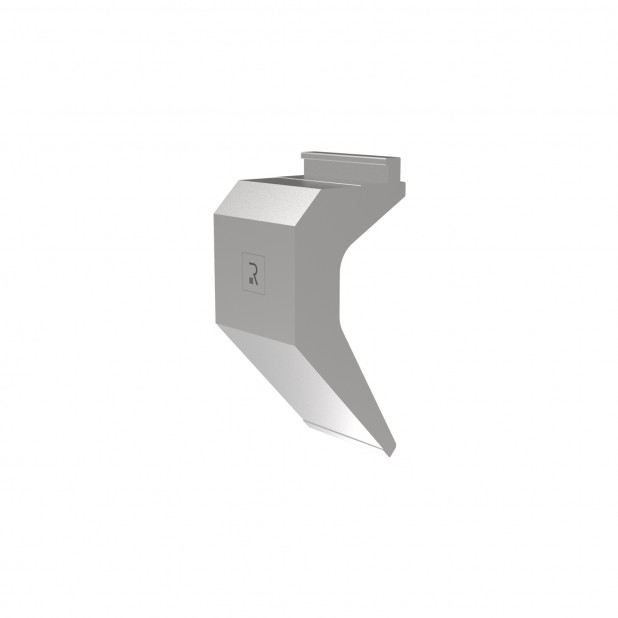

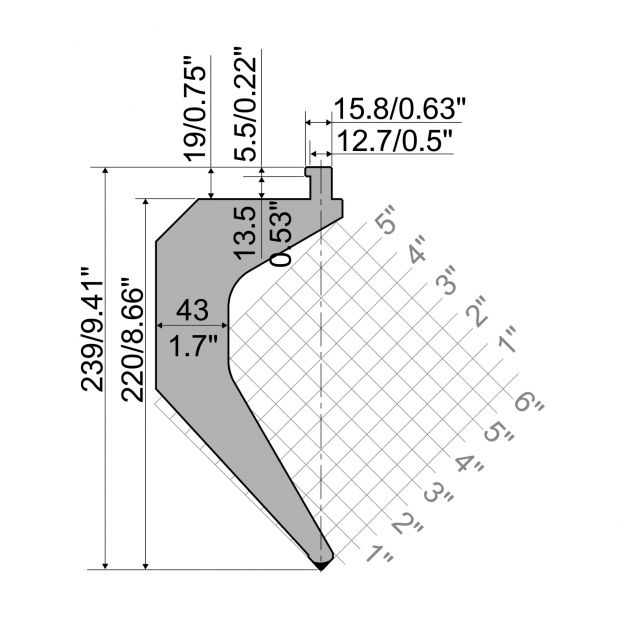

Punch R5 American type TOP Series with Working height=220mm, α=85°, Radius=1.5mm, Material=42cr, Max. load=850kN/m.

Horn 2

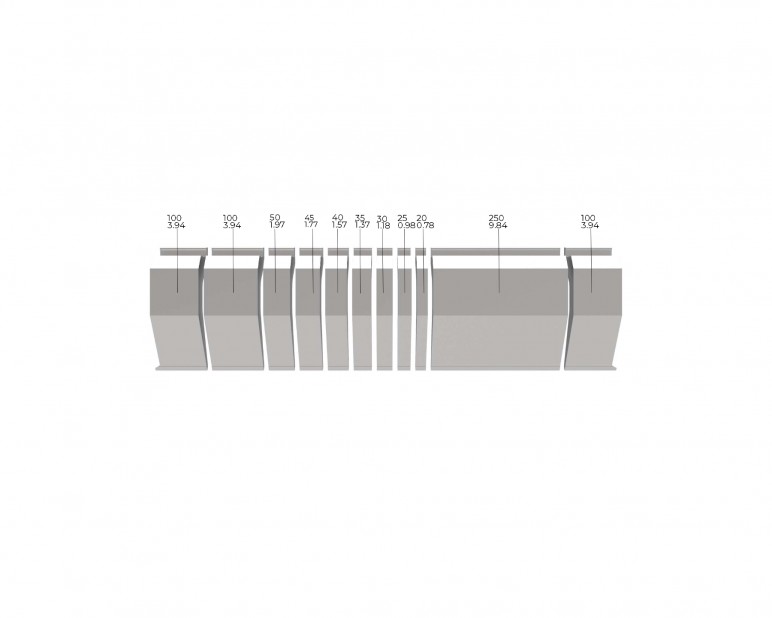

FX 795 mm
