MSA - magnet
Extremely versatile and flexible magnetic bracket
ASP.19.31TOOLS > PRESS BRAKES > Tools > Type R5: Punches > ASP.19.62ASP.19.125
ASP.19.31TOOLS > PRESS BRAKES > Tools > Type R5: Punches > ASP.19.62ASP.19.125
| Article No. | Length | Weight | Price | |
|---|---|---|---|---|
| ASP.19.62.838 | 838 mm | 13.8 |
|
|
| ASP.19.62.415 | 415 mm | 6.8 |
|
|
| ASP.19.62.805s | 805 mm F | 13.3 |
|

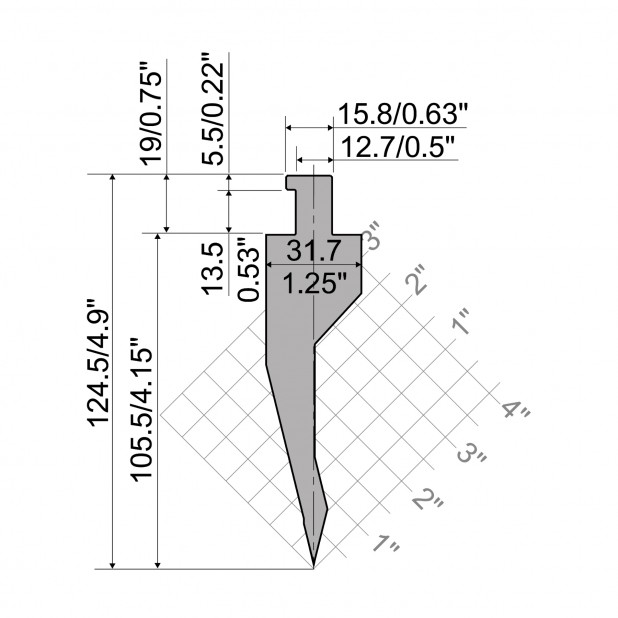

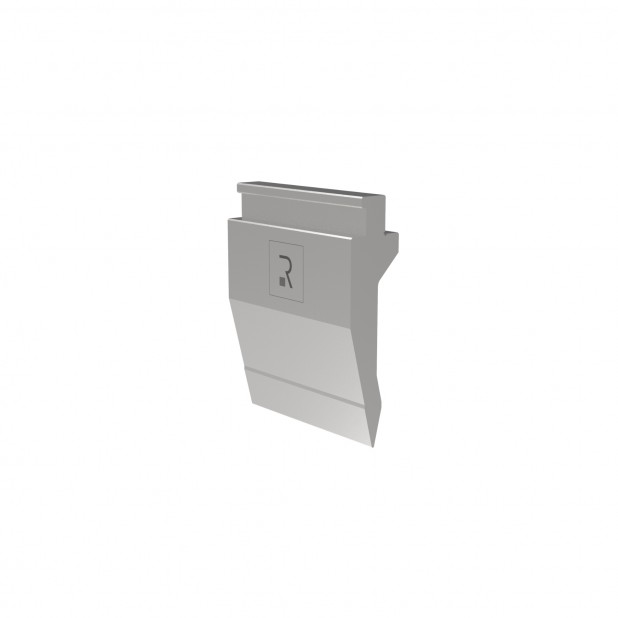

Punch R5 American type CLASSIC Series with Working height=105.5mm, α=28°, Radius=1.6mm, Material=42cr, Max. load=860kN/m.
Extremely versatile and flexible magnetic bracket
