ASP.19.125TOOLS > PRESS BRAKES > Tools > Type R5: Punches > ASP.23.31ASP.23.62

ASP.23.31

Article No. Length Weight Price
ASP.23.31.838 838 mm 12.5
ASP.23.31.415 415 mm 5.4
ASP.23.31.805s 805 mm F 10.5
  • Description
  • Features
  • Attachments

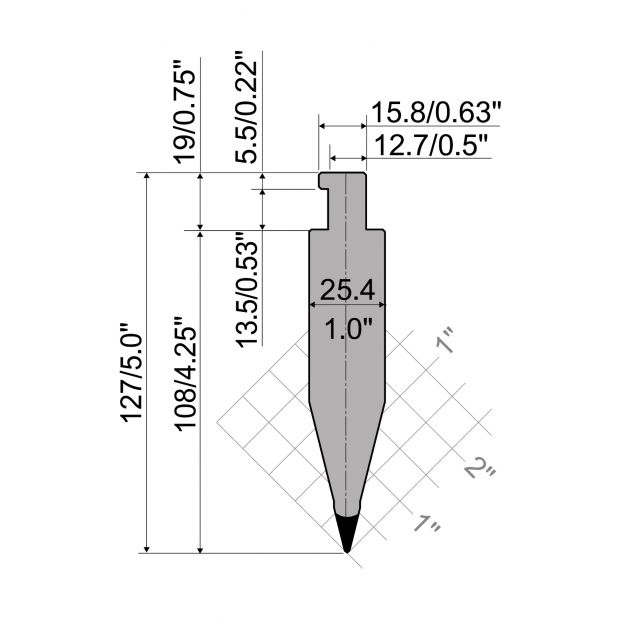

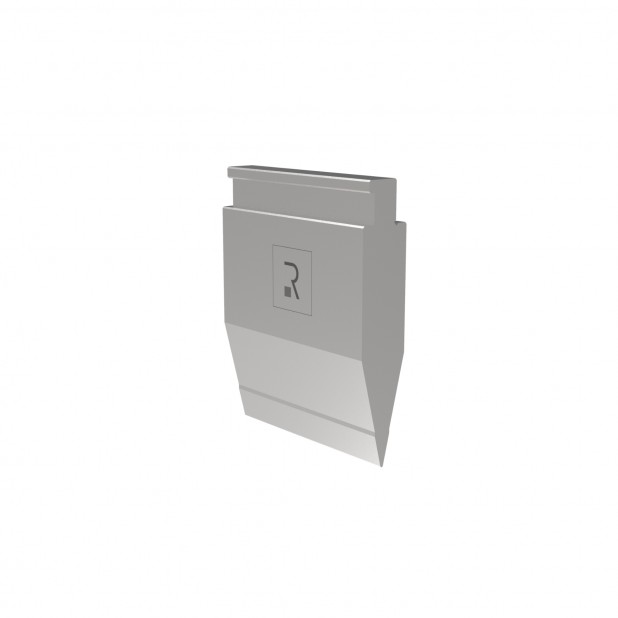

Punch R5 American type CLASSIC Series with Working height=108mm, α=28°, Radius=0.8mm, Material=42cr, Max. load=1000kN/m.

Horn 1
F 805 mm
