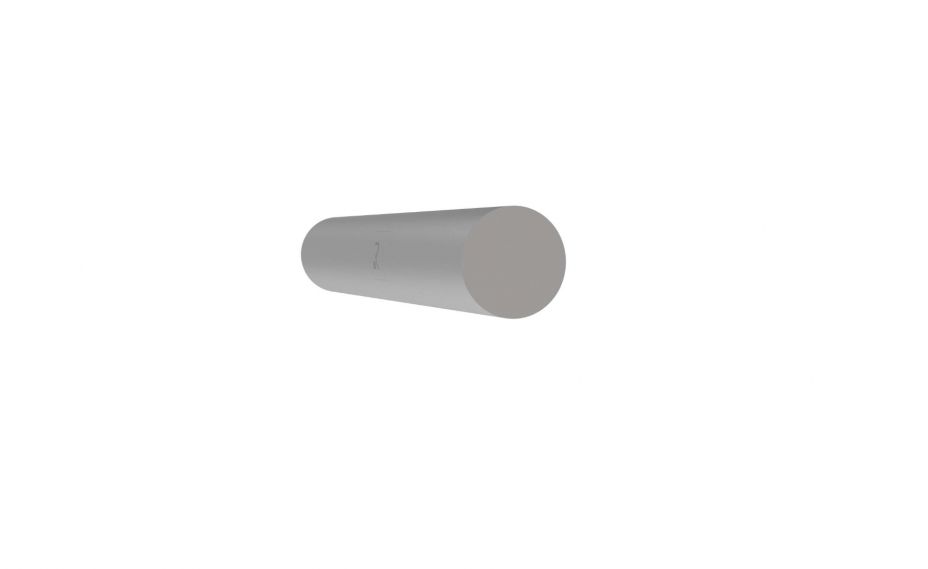

ASP-RADIUS TOOLS:R08-40

Article No.	Length	R [mm]	Weight
TOP.C08.525	525 mm	8.0	0.8
TOP.C08.495s	495 mm	8.0	0.8
TOP.C09.525	525 mm	9.0	1.0
TOP.C09.495s	495 mm	9.0	1.0
TOP.C10.525	525 mm	10.0	1.3
TOP.C10.495s	495 mm	10.0	1.2
TOP.C11.525	525 mm	11.0	1.60
TOP.C11.495s	495 mm	11.0	1.50
TOP.C12.5.525	525 mm	12.5	2.00
TOP.C12.5.495s	495 mm	12.5	1.90
TOP.C14.525	525 mm	14.0	2.50
TOP.C14.495s	495 mm	14.0	2.40
TOP.C15.525	525 mm	15.0	2.90
TOP.C15.495s	495 mm	15.0	2.70
TOP.C16.525	525 mm	16.0	3.30
TOP.C16.495s	495 mm	16.0	3.10
TOP.C17.5.525	525 mm	17.5	4.00
TOP.C17.5.495s	495 mm	17.5	3.70
TOP.C19.525	525 mm	19.0	4.70
TOP.C19.495s	495 mm	19.0	4.40
TOP.C20.525	525 mm	20.0	5.20
TOP.C20.495s	495 mm	20.0	4.90
TOP.C21.525	525 mm	21.0	5.70
TOP.C21.495s	495 mm	21.0	5.40
TOP.C22.5.525	525 mm	22.5	6.60
TOP.C22.5.495s	495 mm	22.5	6.20
TOP.C24.525	525 mm	24.0	7.50
TOP.C.24.495s	495 mm	24.0	7.00
TOP.C25.525	525 mm	25.0	8.10
TOP.C.25.495s	495 mm	25.0	7.60
TOP.C27.5.525	525 mm	27.5	9.80
TOP.C27.5.495s	495 mm	27.5	9.20
TOP.C30.525	525 mm	30.0	11.60
TOP.C.30.495s	495 mm	30.0	11.00
TOP.C32.5.525	525 mm	32.5	13.70
TOP.C32.5.495s	495 mm	32.5	12.90
TOP.C35.525	525 mm	35.0	14.90
TOP.C.35.495s	495 mm	35.0	15.90
TOP.C37.5.525	525 mm	37.5	18.20
TOP.C37.5.495s	495 mm	37.5	17.20
TOP.C40.525	525 mm	40.0	20.70
TOP.C.40.495s	495 mm	40.0	19.50

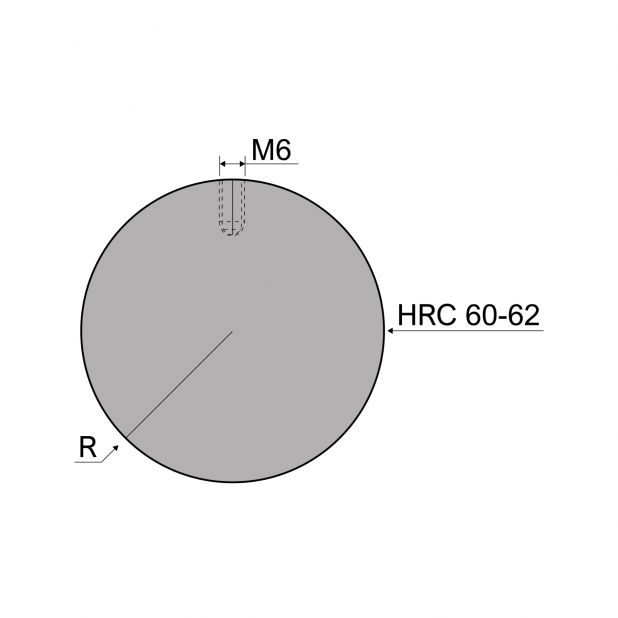

Radius tools with Radius=8-40mm, Material=C53, Max. load=1000kN/m.
