ASP.22.500TOOLS > PRESS BRAKES > Tools > Type R5: Punches > ASP.24.16ASP.24.31
ASP.22.500TOOLS > PRESS BRAKES > Tools > Type R5: Punches > ASP.24.16ASP.24.31
| Article No. | Length | Weight | Price | |
|---|---|---|---|---|
| ASP.24.16.838 | 838 mm | 31.8 |
|
|
| ASP.24.16.415 | 415 mm | 15.8 |
|
|
| ASP.24.16.805s | 805 mm F | 30.6 |
|

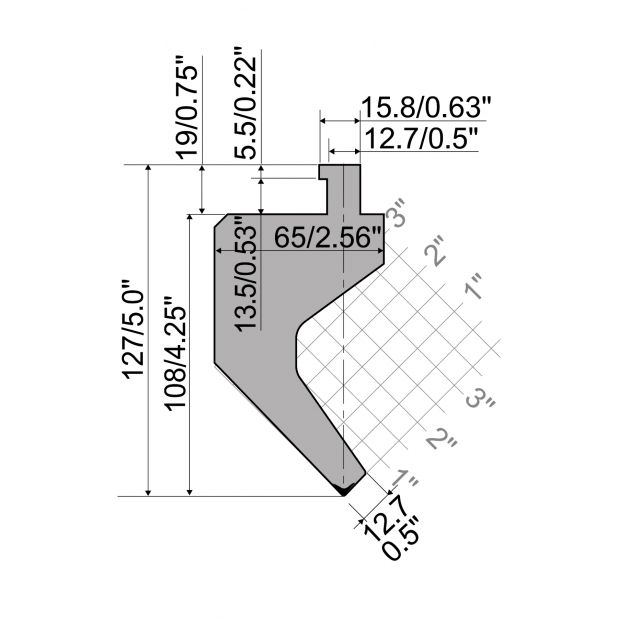

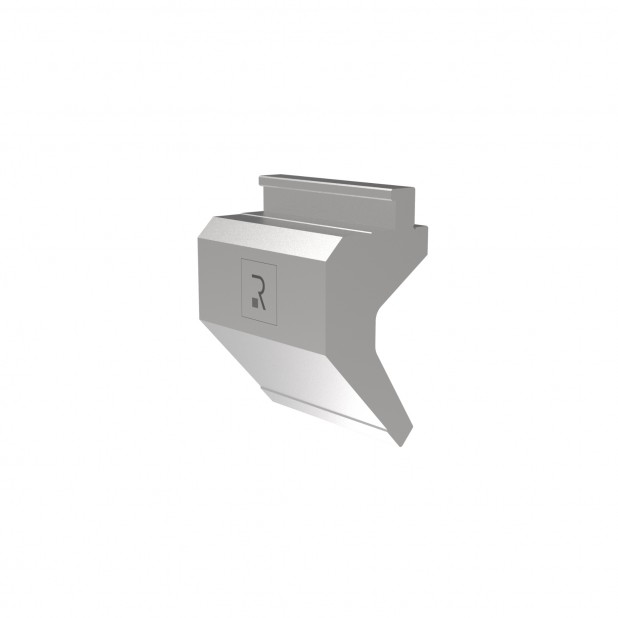

Punch R5 American type CLASSIC Series with Working height=108mm, α=85°, Radius=0.4mm, Material=42cr, Max. load=700kN/m.
