MSA - magnet
Extremely versatile and flexible magnetic bracket

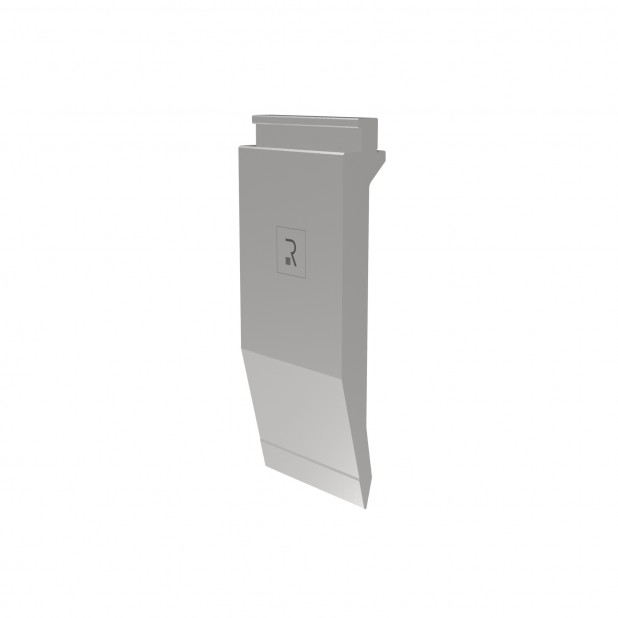

ASP.250.26.R125
| Article No. | Length | Weight | Price | |
|---|---|---|---|---|
| ASP.250.26.R125.525 | 525 mm | 17.7 kg |
|
|

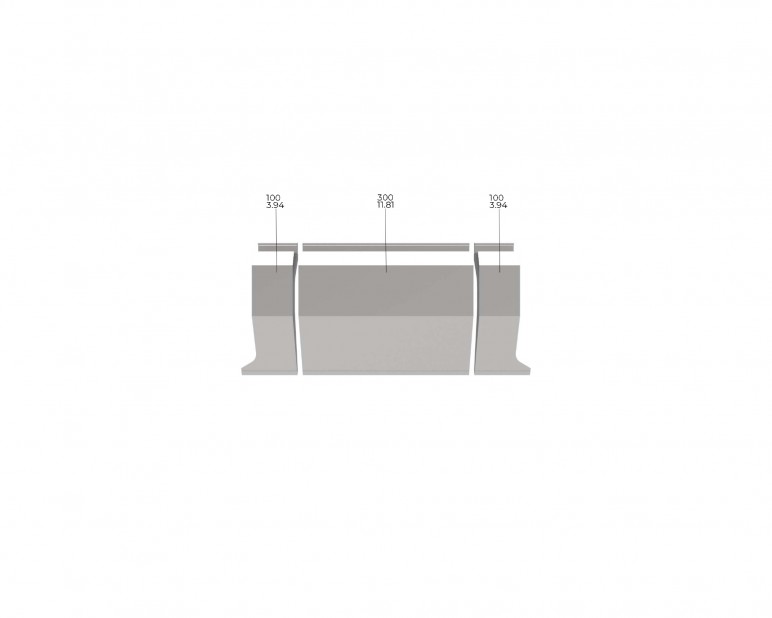

| ASP.250.26.R125.495s | 495 mm FB | 16.7 kg |
|
|

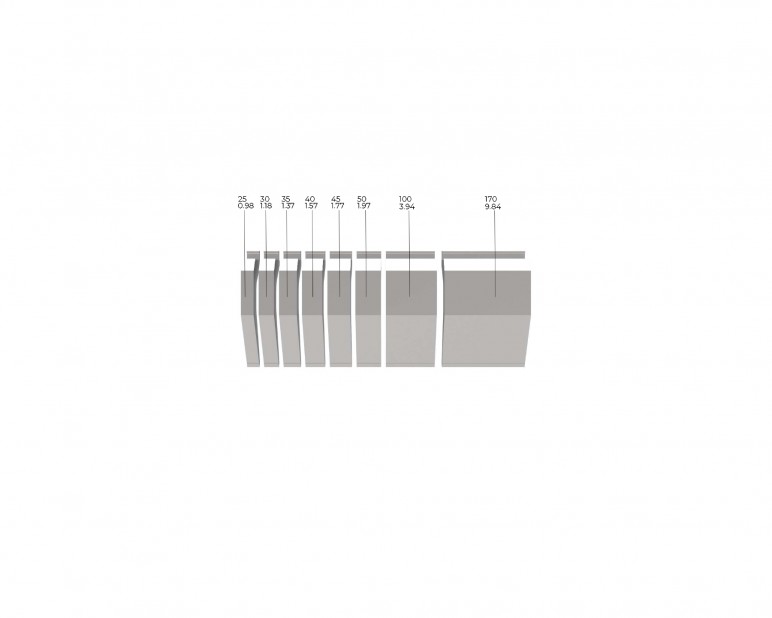

| ASP.250.26.R125.500s | 500 mm FA | 16.8 kg |
|
- Description
- Features

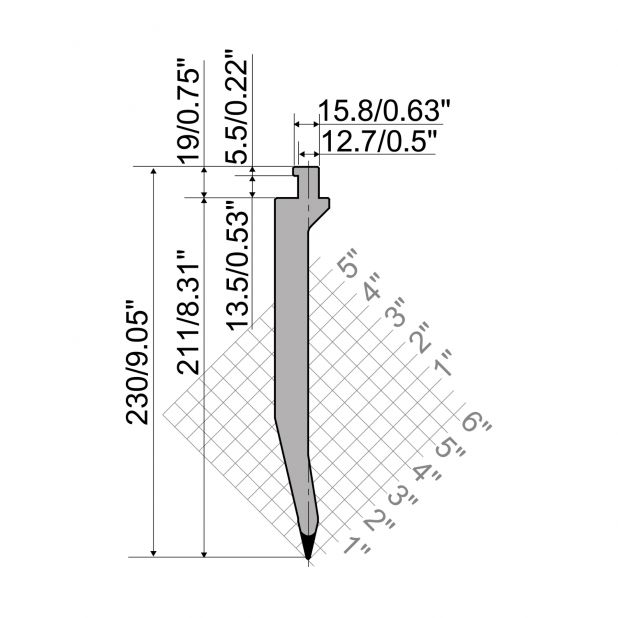

Punch R5 American type TOP Series with Working height=211mm, α=26°, Radius=3.17mm, Material=42cr, Max. load=1000kN/m.
