BLM90.80.78

Article No. Length Weight Price
BLM90.80.78.250 250 mm 12.50
BLM90.80.78.510 510 mm 25.60
BLM90.80.78.550s 550 mm FB 27.60
  • Description
  • Features
  • Attachments

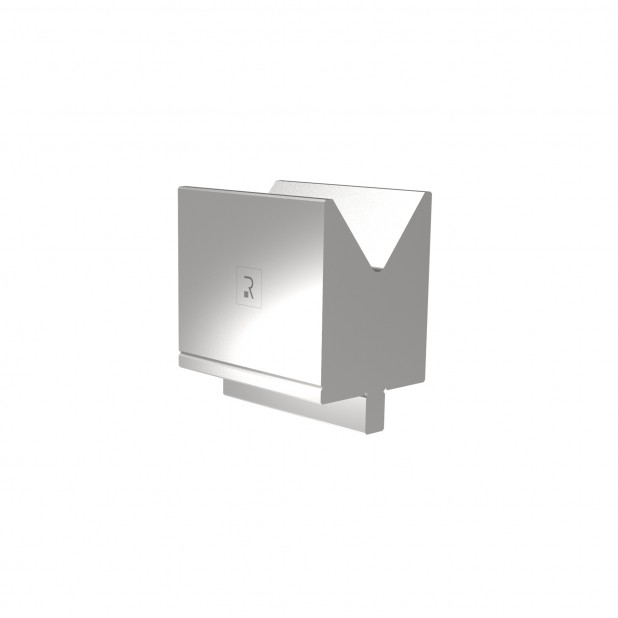

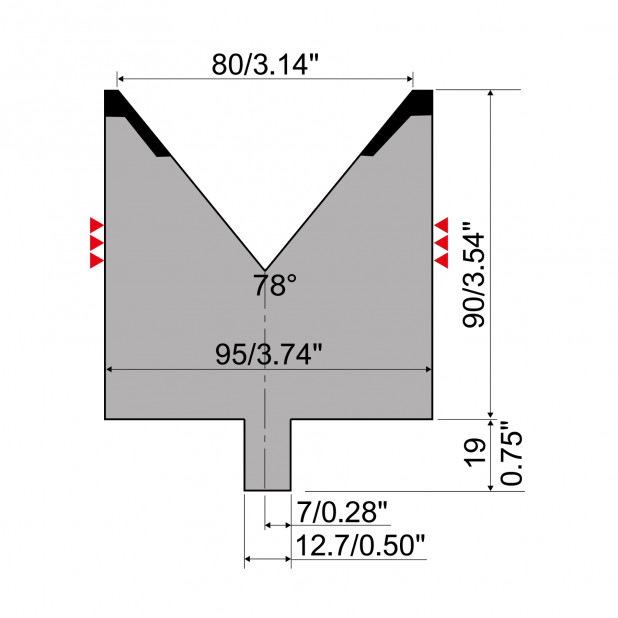

Die R4 type with Working height=90mm, α=78°, Radius=6mm, Material=42Cr, Max. load=2300kN/m.

550 mm F
550 mm FB

BLM model with ground stem
