BLM90.40.78

Article No. Length Weight Price
BLM90.40.78.250 250 mm 8.3
BLM90.40.78.510 510 mm 17.0
BLM90.40.78.550s 550 mm FB 18.3
  • Description
  • Features
  • Attachments

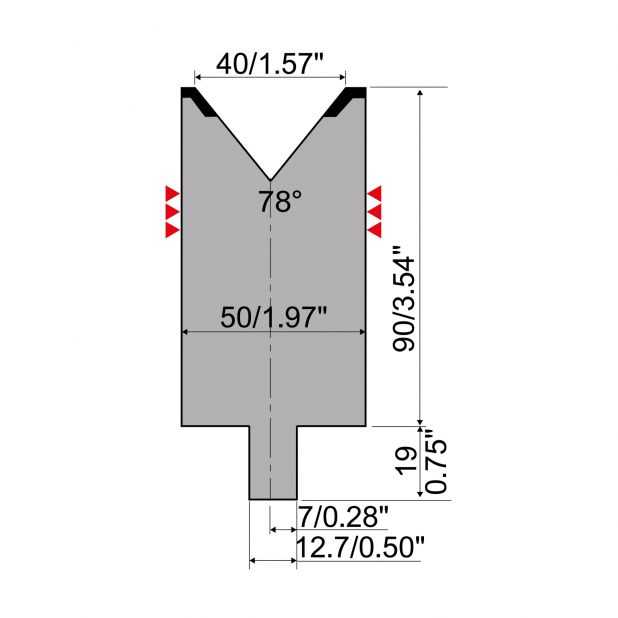

Die R4 type with Working height=90mm, α=78°, Radius=4mm, Material=42Cr, Max. load=1350kN/m.

550 mm F
550 mm FB

BLM model with ground stem
