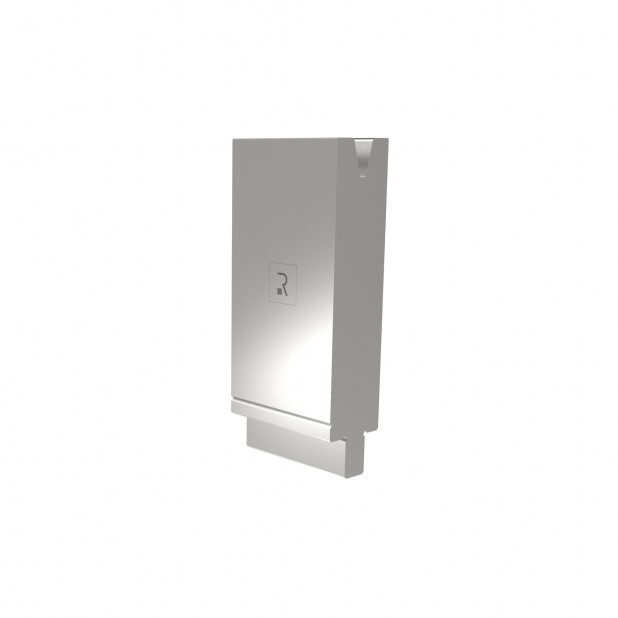

MSA - magnet
Extremely versatile and flexible magnetic bracket
BLM130.12.30
| Article No. | Length | Weight | Price | |
|---|---|---|---|---|
| BLM130.12.30.250 | 250 mm | 6.8 |
|
|
| BLM130.12.30.510 | 510 mm | 13.9 |
|
|
| BLM130.12.30.550s | 550 mm Fb | 15.0 |
|
- Description
- Features

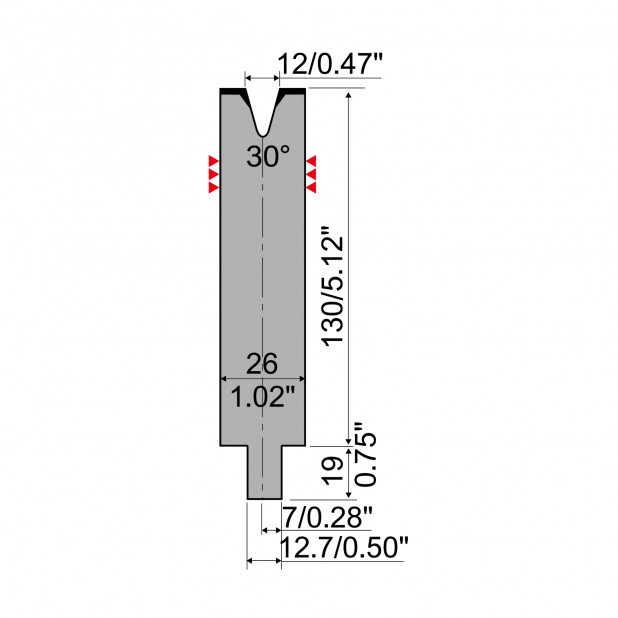

Die R4 type with Working height=130mm, α=30°, Radius=1.2mm, Material=42Cr, Max. load=460kN/m.
BLM model with ground stem
